ST0226-30-502-A

$6.81

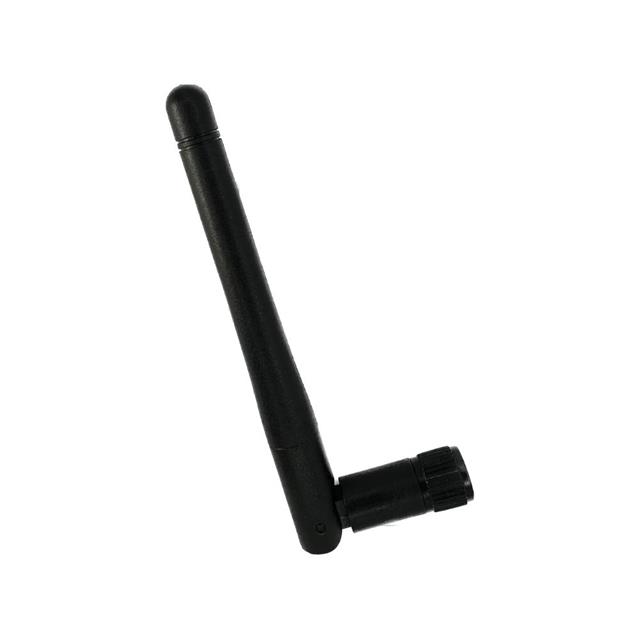

Description：RF ANTENNA STICK RP-SMA PLUG DUA
Series：-
Mfr：Amphenol RF
Package：Bag

SKU:8a85eea46f1e Category: RF Antennas Brand: Amphenol RF

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ST0226-30-502-A is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol RF. Its product description is RF ANTENNA STICK RP-SMA PLUG DUA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ST0226-30-502-A

Description：RF ANTENNA STICK RP-SMA PLUG DUA
Series：-
Mfr：Amphenol RF
Package：Bag
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.5GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
Antenna Type：Whip, Straight
Number of Bands：2
VSWR：-
Return Loss：-10dB
Gain：3dBi, 3.4dBi
Features：-
Termination：RP-SMA
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：4.291" (109.00mm)
Applications：Wi-Fi
Power - Max：1 W

Antennas RF datasheet and documents for ST0226-30-502-A

ST0226-30-502-A

Antennas RF Overview

The ST0226-30-502-A is a linear RF antenna designed for IoT, ISM, WiFi, WLAN, and ZigBee applications. It operates within a frequency range of 5.15 GHz to 5.85 GHz. The unit features a straight whip design with an RP-SMA connector mount interface. This configuration supports wireless communication protocols including WiFi 2 and WWAN. The antenna provides a compact solution for integrating connectivity into electronic devices requiring reliable signal transmission in the specified microwave bands.

Antennas RF Feature Summary

Supports multiple wireless standards including WiFi, WLAN, and ZigBee
Straight whip form factor for omnidirectional coverage
Integrated RP-SMA connector for direct mounting

Antennas RF Applications

IoT device integration
ISM band equipment
WiFi and WLAN access points
WWAN modules
ZigBee sensor networks

Antennas RF Procurement Notes

Verify the specific RP-SMA connector gender and polarity requirements against the host device interface before procurement. Confirm that the operating frequency range aligns with local regulatory spectrum allocations for the intended deployment region. Ensure mechanical clearance allows for the straight whip orientation during installation.

Antennas RF Selection Notes

Select this model when a dedicated external antenna is required for devices utilizing the 5.15–5.85 GHz band. The RP-SMA interface is suitable for standard consumer electronics and industrial modules. Consider environmental factors such as enclosure material and placement relative to other components to optimize radiation efficiency.

Antennas RF Part Context

This component belongs to the Amphenol MCP IoT Antennas series. It is part of a broader portfolio of RF antennas manufactured by Amphenol RF, which specializes in interconnect solutions. The product line targets high-volume applications in connected devices, emphasizing ease of integration and compliance with common wireless standards.
