Description：EXTERNAL ANTENNA 2400-2500 5150
Series：-
Mfr：Amphenol RF
Package：Bulk

SKU:106711ddba3f Category: RF Antennas Brand: Amphenol RF

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

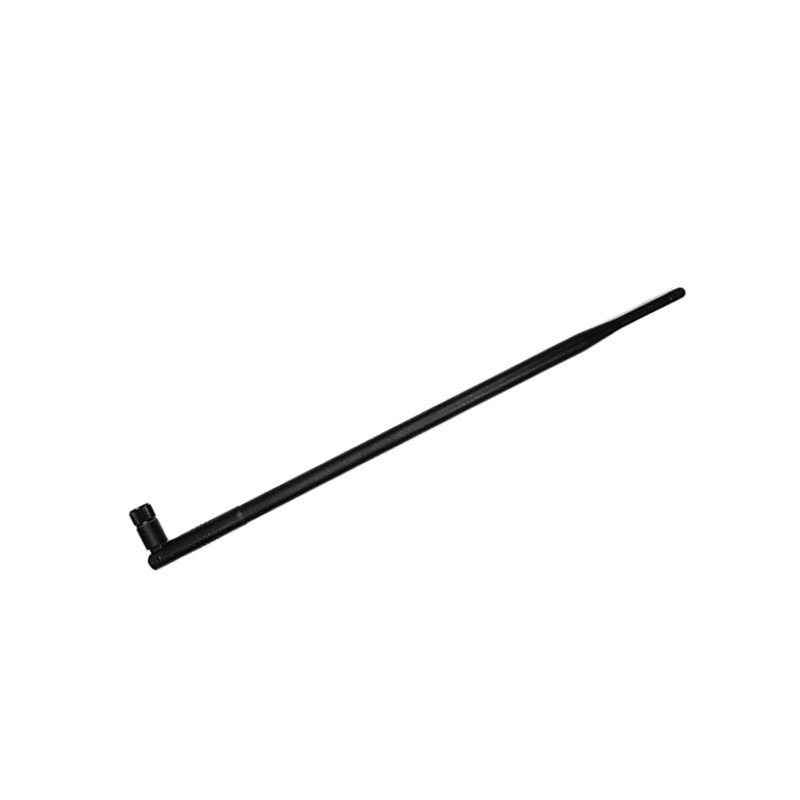

ST0228-40-501-A is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol RF. Its product description is EXTERNAL ANTENNA 2400-2500 5150. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ST0228-40-501-A

Description：EXTERNAL ANTENNA 2400-2500 5150
Series：-
Mfr：Amphenol RF
Package：Bulk
RF Family/Standard：General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.487GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz
Antenna Type：Whip, Right Angle
Number of Bands：2
VSWR：-
Return Loss：-10dB
Gain：6.4dBi, 6.7dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：15.512" (394.00mm)
Applications：IoT, Wi-Fi
Power - Max：1 W

Antennas RF datasheet and documents for ST0228-40-501-A

ST0228-40-501-A

Antennas RF Overview

The Amphenol RF ST0228-40-501-A is a dual-band external RF antenna designed for Wi-Fi applications. It operates within the 2.4 GHz to 2.5 GHz and 5.15 GHz to 5.85 GHz frequency ranges, supporting 2.4GHz and 5.5GHz center frequencies. The unit features an SMA connector interface and utilizes a stick-style form factor with straight mounting. It provides gains of 2.8 dBi at 2.4 GHz and 4.9 dBi at 5.5 GHz. The antenna has a maximum height of 196.00 mm (7.717 inches) and supports a maximum power rating of 2 W.
