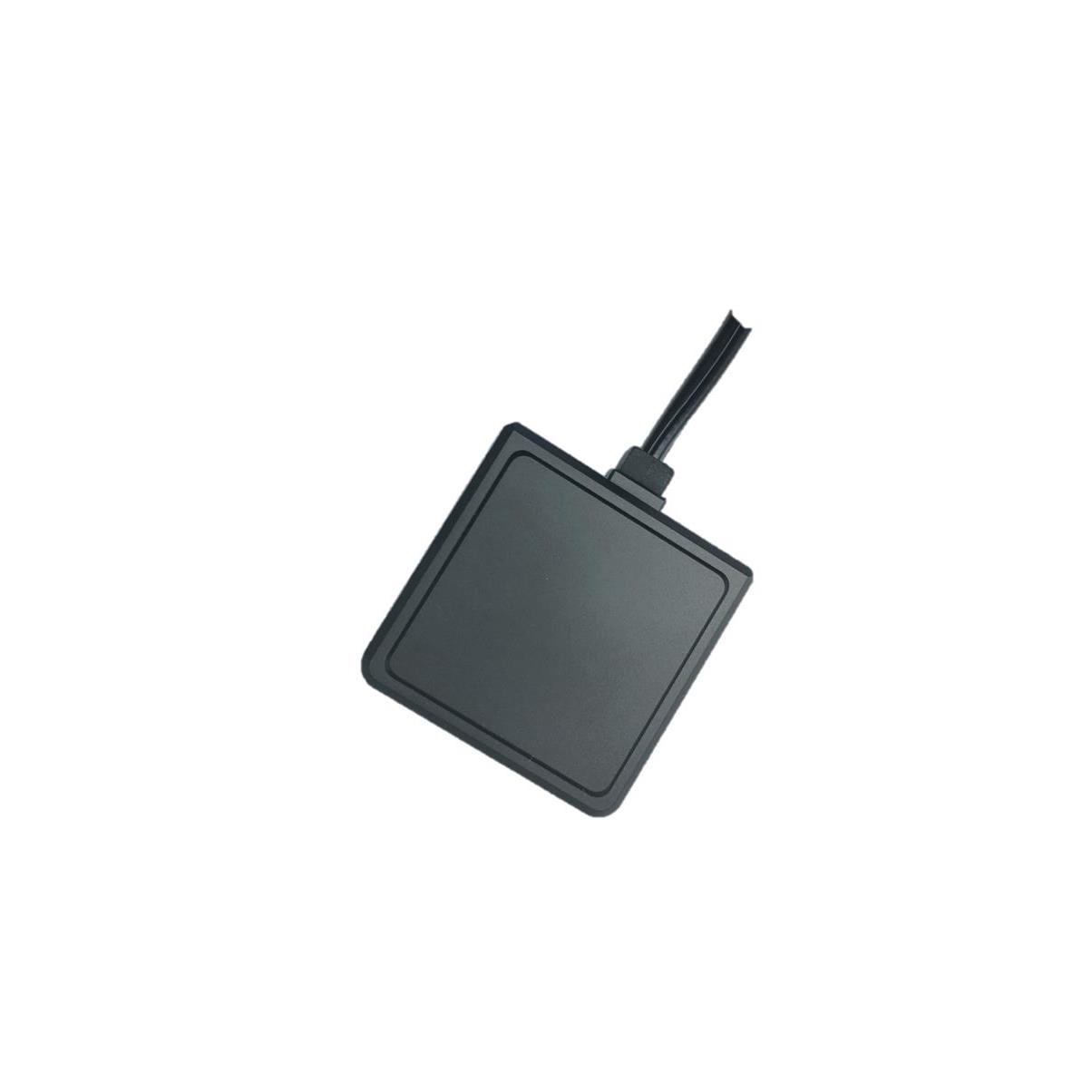

ST0985-22-001-A is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol RF. Its product description is RF ANTENNA EXTERNAL COMBINATION. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ST0985-22-001-A
- Description：RF ANTENNA EXTERNAL COMBINATION
- Series：-
- Mfr：Amphenol RF
- Package：Bag
- RF Family/Standard：Cellular, Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz
- Frequency Range：698MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz
- Antenna Type：Module
- Number of Bands：6
- VSWR：-
- Return Loss：-6dB, -4.4dB, -3.5dB, 3.1dB
- Gain：1.9dBi, 0.5dBi, 1dBi, 3dBi, 1.4dBi, 1dBi
- Features：Cable - 1m, LNA
- Termination：SMA
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.909" (23.10mm)
- Applications：GNSS, LTE
- Power - Max：1 W
Antennas RF datasheet and documents for ST0985-22-001-A
Antennas RF Overview
The ST0985-22-001-A is an external combination band RF antenna manufactured by Amphenol RF. It supports LoRa, LTE, GSM, and 2G/3G/4G/5G cellular technologies. The operational frequency range spans from 698 MHz to 2690 MHz. This component is designed for IoT applications requiring multi-band connectivity.
Antennas RF Feature Summary
- Supports multiple wireless standards including LoRa and LTE
- Designed for external installation in IoT devices
- Combines wideband coverage for cellular and LPWAN protocols
Antennas RF Applications
- IoT sensor networks
- Smart metering systems
- Industrial automation monitoring
Antennas RF Procurement Notes
Verify the specific connector type and mounting hardware compatibility with your device enclosure before ordering. Confirm regulatory compliance certifications such as CE or FCC for your target market. Ensure the antenna's impedance matches your system requirements to maintain signal integrity.
Antennas RF Selection Notes
Select this model when a single external solution is needed for both cellular and LoRa communication. Consider environmental factors like weather resistance if deployed outdoors. Verify that the frequency range covers all required bands for your specific regional network operators.
Antennas RF Part Context
This part belongs to Amphenol RF's portfolio of antennas for IoT and industrial applications. It addresses the need for compact, multi-protocol connectivity in constrained spaces. The design integrates multiple resonant elements to support diverse frequency bands efficiently.
Antennas RF Replacement Considerations
No direct public substitute part numbers are confirmed for this specific multi-band configuration. Evaluate other Amphenol RF models with similar frequency ranges if availability is an issue.
