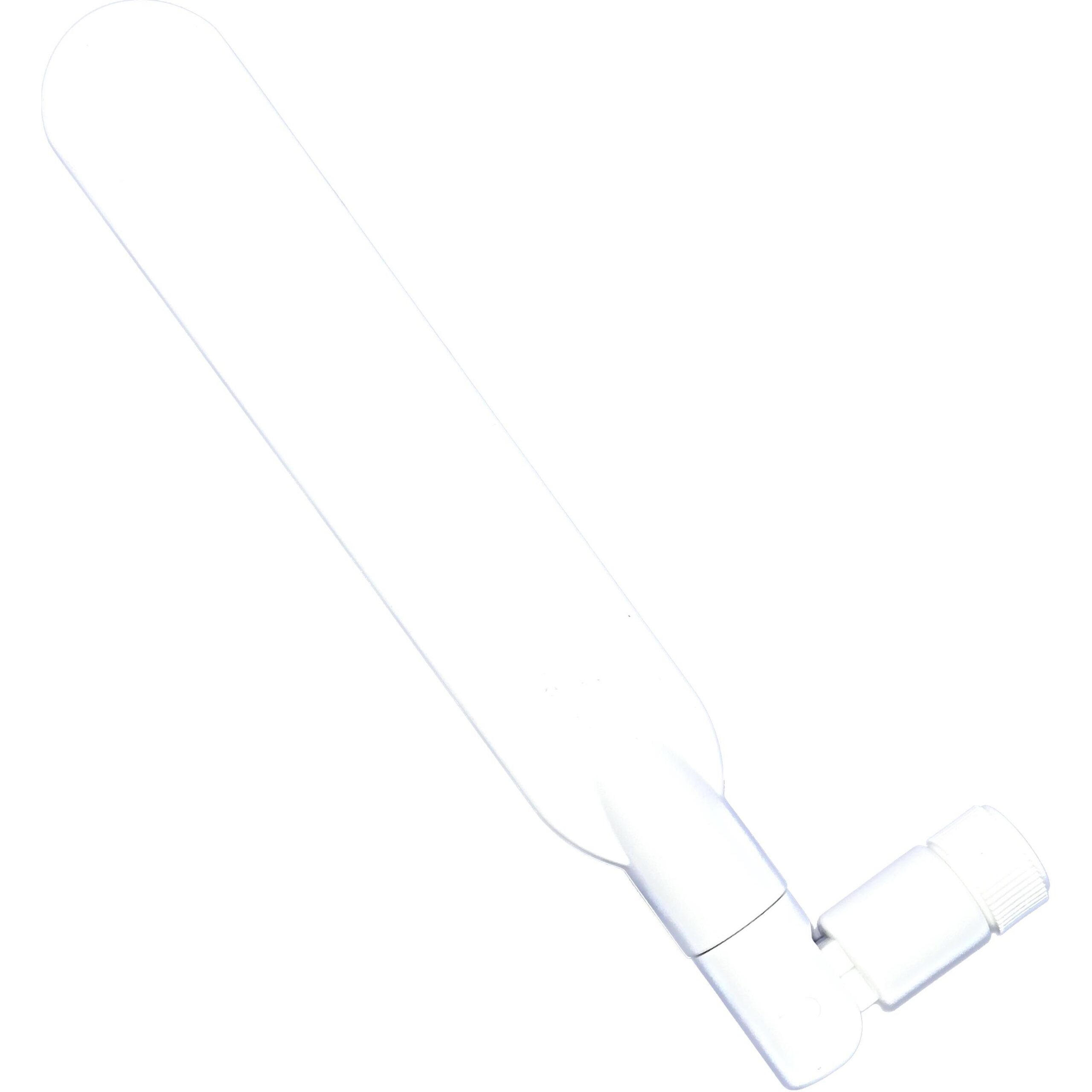

ST1228-30-001-B

$9.04

Description：RF ANTENNA EXTERNAL WIFI ANT
Series：-
Mfr：Amphenol RF
Package：Box

SKU:8542a625a2d4 Category: RF Antennas Brand: Amphenol RF

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ST1228-30-001-B is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol RF. Its product description is RF ANTENNA EXTERNAL WIFI ANT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ST1228-30-001-B

Description：RF ANTENNA EXTERNAL WIFI ANT
Series：-
Mfr：Amphenol RF
Package：Box
RF Family/Standard：WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：2.45GHz, 5.4875GHz, 6.525GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz, 5.925GHz ~ 7.125GHz
Antenna Type：Whip, Right Angle
Number of Bands：3
VSWR：-
Return Loss：-10dB
Gain：2.7dBi, 4.6dBi, 4.4dBi
Features：-
Termination：SMA
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：6.378" (162.00mm)
Applications：Wi-Fi
Power - Max：1 W

Antennas RF datasheet and documents for ST1228-30-001-B

ST1228-30-001-B

Antennas RF Overview

ST1228-30-001-B is a multi-band external RF antenna manufactured by Amphenol RF. It operates across three frequency bands: 2400-2500 MHz, 5150-5825 MHz, and 5925-7125 MHz. The device features an SMA connector mount type with linear polarization. It supports a maximum power of 1 Watt and provides a gain of 4.4 dBi. Designed for Wi-Fi 6E, IoT, ISM, UNII, WLAN, Zigbee, and Bluetooth applications, this stick antenna ensures reliable signal transmission in diverse wireless environments.

Antennas RF Feature Summary

Supports tri-band operation covering 2.4 GHz, 5 GHz, and 6 GHz frequencies
Features SMA connector mount for direct integration
Provides 4.4 dBi gain with linear polarization
Compatible with Wi-Fi 6E, IoT, and Bluetooth protocols

Antennas RF Applications

Wi-Fi 6E network infrastructure
Internet of Things (IoT) devices
Wireless LAN access points
Bluetooth communication modules

Antennas RF Procurement Notes

Verify the specific SMA connector gender and cable length requirements against system interface specifications. Confirm that the operating environment falls within the supported frequency ranges of 2400-2500 MHz, 5150-5825 MHz, and 5925-7125 MHz. Ensure compliance with regional regulatory standards for the intended deployment location before procurement.

Antennas RF Selection Notes

Select this model when multi-band coverage including the 6 GHz spectrum is required for high-throughput applications. The 4.4 dBi gain offers balanced performance for general indoor or outdoor use. Consider the SMA mounting style for compatibility with existing equipment interfaces. Evaluate physical dimensions to ensure fit within the target enclosure or installation site.

Antennas RF Part Context

The ST1228-30-001-B belongs to Amphenol RF's external RF antenna portfolio. It complements other models like ST0228-30-001-A by extending support to the newer 6 GHz band. This series targets modern wireless standards requiring broader bandwidth and higher data rates.
