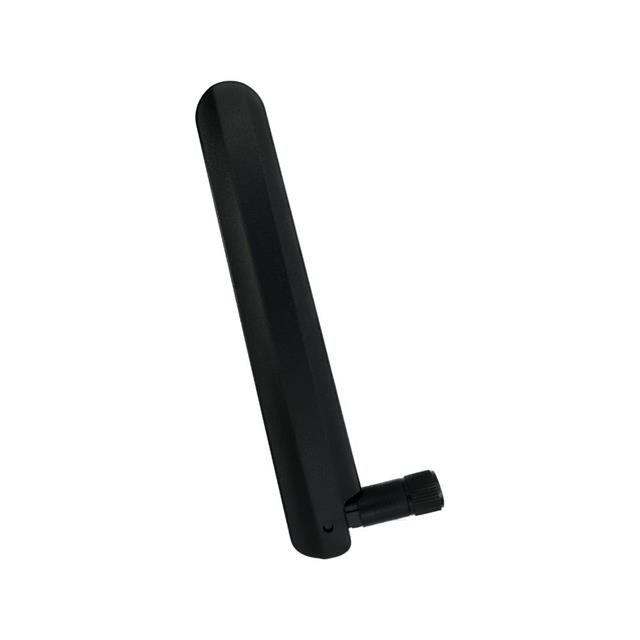

ST1326-30-001-A is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol RF. Its product description is RF ANTENNA STICK SMA PLUG WIDE B. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ST1326-30-001-A
- Description：RF ANTENNA STICK SMA PLUG WIDE B
- Series：-
- Mfr：Amphenol RF
- Package：Bag
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：825MHz, 1.945GHz, 2.495GHz, 4.575GHz
- Frequency Range：690MHz ~ 960MHz, 1.72GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5.85GHz
- Antenna Type：Whip, Straight
- Number of Bands：4
- VSWR：-
- Return Loss：-
- Gain：5.1dBi, 3.9dBi, 4dBi, 3.2dBi
- Features：-
- Termination：SMA
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：5.945" (151.00mm)
- Applications：4G, LTE
- Power - Max：2 W
Antennas RF datasheet and documents for ST1326-30-001-A
Antennas RF Overview
The Amphenol RF ST1326-30-001-A is a wideband whip antenna designed for 4G LTE, 5G NR, IoT, ISM, NB-IoT, and WWAN applications. It operates within a frequency range of 3.3 GHz to 5.85 GHz. The component features an omni-directional polarization and provides a gain of 3.2 dB. It has a maximum input power rating of 2 W and a characteristic impedance of 50 ohms. The antenna utilizes a straight SMA connector for mounting.
Antennas RF Feature Summary
- Supports multiple wireless standards including 4G LTE, 5G NR, and NB-IoT across a wide frequency band
- Engineered for robust indoor and outdoor environmental use
- Features omni-directional radiation pattern for consistent signal coverage
Antennas RF Applications
- IoT device connectivity modules
- Wireless Wide Area Network (WWAN) equipment
- Industrial automation systems requiring 5G or LTE communication
Antennas RF Procurement Notes
Verify the specific SMA connector gender and mating requirements against the host device interface before procurement. Confirm that the operating environment aligns with the antenna's intended indoor or outdoor durability specifications. Ensure the required frequency bands for the target application fall within the 3.3 GHz to 5.85 GHz operational range to guarantee performance compliance.
Antennas RF Selection Notes
Select this model when a single wideband solution is required to replace multiple narrowband antennas for diverse cellular and IoT protocols. Consider the physical dimensions and mounting constraints associated with the straight whip design. Evaluate the need for external mounting capabilities provided by the SMA connector interface versus internal integrated solutions.
Antennas RF Part Context
This component belongs to the Amphenol RF MCP IoT Antennas series, which focuses on compact, high-performance solutions for Internet of Things deployments. The product line addresses the growing demand for versatile antennas capable of handling evolving network standards without requiring hardware redesigns for different regional frequencies.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing SMA interfaces if considering alternative wideband whip antennas from other manufacturers.
