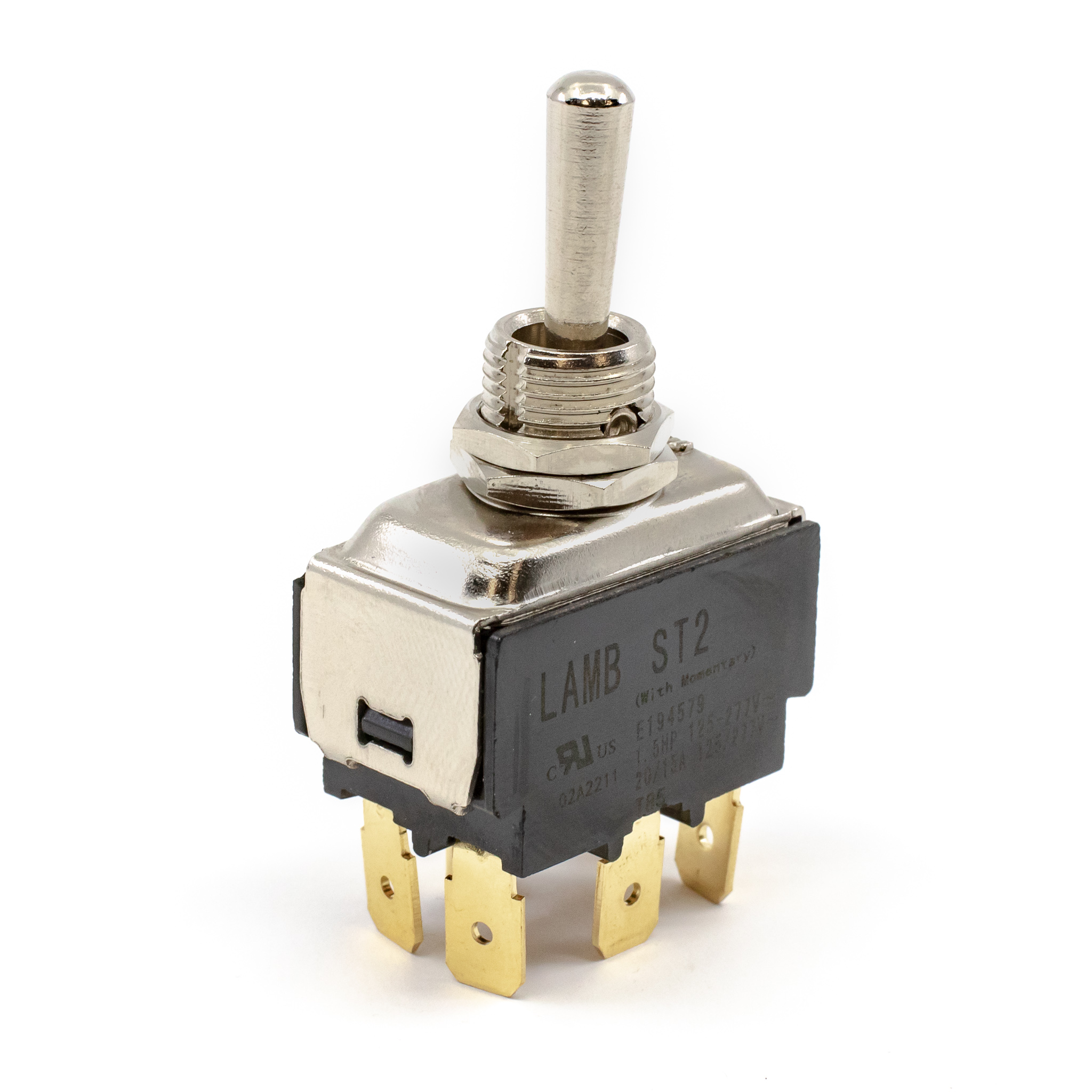

ST24JD00 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH TOGGLE DPDT 20A 125V. Review the specifications below when checking this part for your BOM.
Toggle Switches specifications for ST24JD00
- Description：SWITCH TOGGLE DPDT 20A 125V
- Series：ST2
- Mfr：E-Switch
- Package：Bulk
- Mounting Type：Panel Mount
- Circuit：DPDT
- Switch Function：On-Off-Mom
- Current Rating (Amps)：20A (AC)
- Voltage Rating - AC：125 V
- Voltage Rating - DC：-
- Actuator Type：Standard Round
- Actuator Length：17.50mm
- Illumination：Non-Illuminated
- Illumination Type, Color：-
- Illumination Voltage (Nominal)：-
- Termination Style：Quick Connect - 0.250" (6.3mm)
- Panel Cutout Dimensions：Circular - 12.00mm Dia
- Bushing Thread：M12 x 1
- Ingress Protection：-
- Features：-
- Operating Temperature：0°C ~ 85°C
Toggle Switches datasheet and documents for ST24JD00
