STDCSU1-10M

Overview

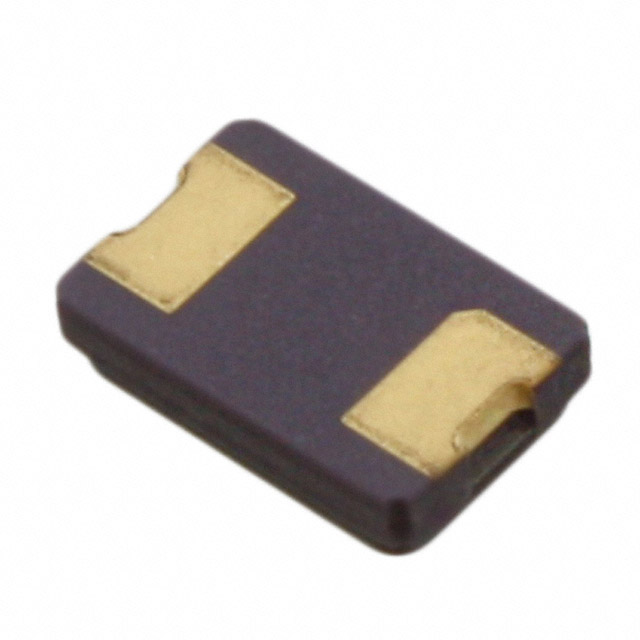

STDCSU1-10M is a surface-mount crystal oscillator manufactured by NDK. It operates at a fundamental frequency of 10 MHz with a load capacitance of 8 pF and an equivalent series resistance (ESR) of 150 Ohms. The component features a frequency tolerance of ±50 ppm and stability of ±50 ppm. It utilizes a 2-SMD, no-lead package with dimensions of 5.00 mm in length and 3.20 mm in width. The device supports a maximum installation height of 1.50 mm and functions within a temperature range of -10°C to 70°C.

Feature Summary

• Fundamental mode operation for stable frequency generation
• Surface-mount design compatible with automated assembly processes
• Compliant with RoHS3 environmental standards

Applications

• General-purpose clock signal generation in electronic circuits
• Timing reference for microcontrollers and digital logic systems
• Consumer electronics requiring standard frequency references

Procurement Notes

Verify the specific package dimensions and electrical parameters against the official NDK datasheet prior to integration. Confirm that the 2-SMD footprint matches the target PCB layout constraints. Ensure the operating temperature range aligns with the intended application environment requirements.

Selection Notes

Select this component when a 10 MHz fundamental frequency is required with moderate stability specifications. Consider the 150 Ohm ESR value for oscillator circuit compatibility. Evaluate the 2-SMD package size against available board space compared to other series options.

Part Context

The STDCSU1-10M belongs to the NX5032GA series of surface-mount crystals from NDK. This series provides standardized timing solutions for various industrial and consumer applications. The part shares common design characteristics with other members of the family while offering specific frequency and package configurations.

Replacement Considerations

NX5032GA-10M
