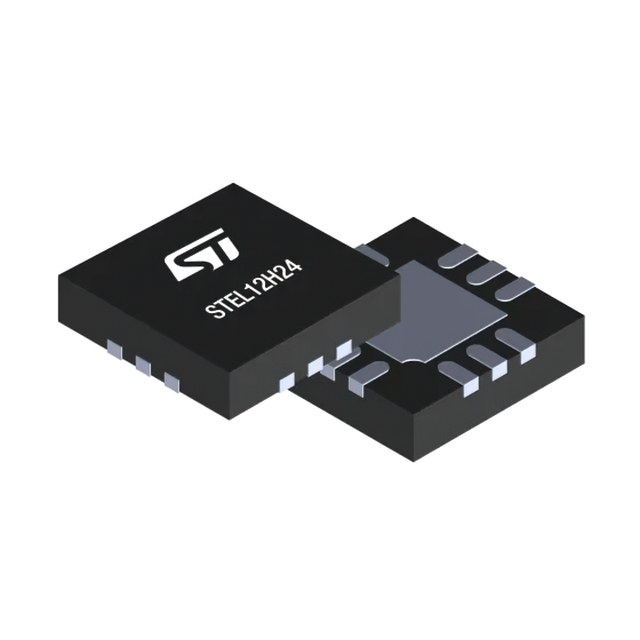

STEL12H24PUR

Overview

The STEL12H24PUR is an electronic switch designed for 12 V, 5 V, and 3.3 V power bus architectures. It integrates controlled surge and overcurrent protection to limit inrush current, detect input voltage faults, and identify short circuits. The device features a low RDSON N-channel MOSFET that ensures efficient operation while maintaining low power consumption during normal conditions. An integrated output discharge path facilitates rapid de-energization. A 'Power Good' output signal provides status indication for detected events. Soft-start functionality is adjustable via an external capacitor, complemented by undervoltage lockout and thermal protection mechanisms.

Feature Summary

• Integrated surge and overcurrent protection with soft-start capability
• Low on-resistance N-channel MOSFET for minimal conduction losses
• Built-in fault detection including short circuit and undervoltage lockout
• External capacitor-controlled timing for customizable startup profiles

Applications

• Protection of 12 V power distribution buses
• Protection of 5 V power distribution buses
• Protection of 3.3 V power distribution buses
• Surge current limiting in industrial power systems

Procurement Notes

Verify the specific package marking and date code against official STMicroelectronics documentation to ensure authenticity. Confirm that the PUR suffix corresponds to the required tape-and-reel packaging format if automated assembly is planned. Cross-reference the component lot traceability requirements with your manufacturing quality standards before finalizing procurement orders.

Selection Notes

Select this component when designing power architectures requiring integrated protection for standard voltage rails. It is suitable for applications needing precise control over inrush currents without external discrete components. Consider the DFN12 package constraints regarding thermal dissipation and PCB layout space. Ensure the external soft-start capacitor selection aligns with the desired startup ramp time specifications.

Part Context

This device belongs to the family of intelligent high-side switches or electronic fuses optimized for power distribution networks. It replaces traditional fuse and relay combinations by offering resettable protection and diagnostic feedback. The integration of the MOSFET and control logic reduces board footprint compared to discrete solutions.

Replacement Considerations

Consult official STMicroelectronics substitution guides for verified alternatives. Generic equivalents may lack the specific integrated discharge path or exact soft-start characteristics.
