STF202-22T1G

Overview

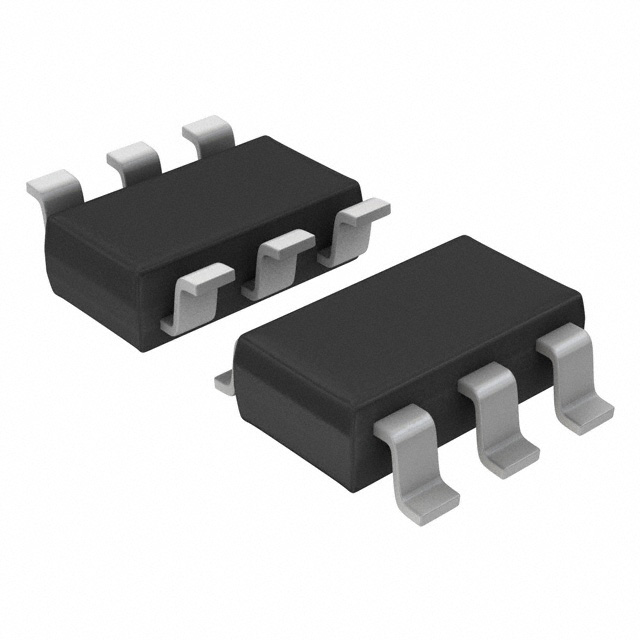

The STF202-22T1G is a USB filter with integrated ESD protection manufactured by onsemi. It is housed in a compact 6-pin TSOP package. The device is engineered to provide line termination, EMI filtering, and electrostatic discharge protection for sensitive electronic components. It is specifically designed for use in upstream USB ports and cellular applications where signal integrity and component safety are critical.

Feature Summary

• Provides integrated ESD protection for sensitive electronic components
• Offers EMI filtering capabilities for signal lines
• Includes line termination functionality

Applications

• Upstream USB ports
• Cellular applications

Procurement Notes

Verify the specific datasheet version and ordering information directly from onsemi or authorized distributors. Confirm that the 6-pin TSOP package matches your PCB footprint requirements. Ensure the component meets all relevant regulatory standards for ESD and EMI performance in your target application environment before finalizing procurement.

Selection Notes

Select this component when designing circuits that require combined EMI filtering and ESD protection for USB interfaces. The compact 6-pin TSOP package is suitable for space-constrained designs. Consider its suitability for both upstream USB ports and cellular applications based on system signal integrity needs.

Part Context

This part belongs to onsemi's portfolio of EMI/RFI filters and ESD protection devices. It addresses the growing need for robust protection in high-speed digital interfaces like USB. The integration of filtering and protection in a single small package helps reduce board space and simplify design complexity for manufacturers.

Replacement Considerations

Consult official onsemi documentation for verified substitute part numbers. Do not assume cross-compatibility with other ESD or filter components without verifying electrical parameters and pin configurations.
