STFE050-10N

Power Line Filter Modules Overview

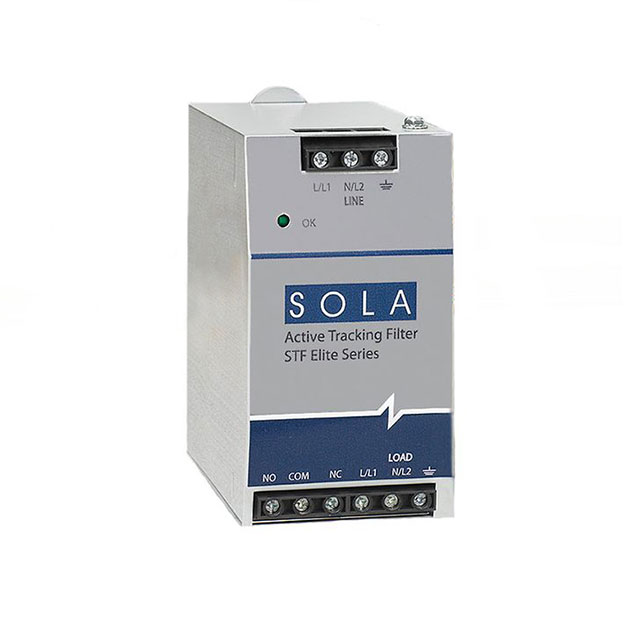

The SolaHD STFE050-10N is a single-phase active tracking filter designed for 120 VAC power systems. It features a 5 A current rating and operates within a frequency range of 47 to 63 Hz. The unit measures 2.56 inches in width, 4.56 inches in depth, and 4.88 inches in height. It utilizes a terminal block termination style and supports DIN rail mounting. The device is rated for an operating temperature between -40°C and 50°C. It holds UL (Canada and US) and CE approvals and complies with RoHS standards.

Power Line Filter Modules Feature Summary

• Active tracking technology for enhanced noise suppression
• DIN rail mounting for compact industrial integration
• Terminal block termination for secure wiring
• Encapsulated design for protection against contaminants

Power Line Filter Modules Applications

• Protection of PLCs from power disturbances
• Shielding control panels from EMI/RFI noise
• Safeguarding machine tools in industrial environments
• Conditioning power for sensitive automation equipment

Power Line Filter Modules Procurement Notes

Verify the specific voltage configuration matches the 120VAC requirement before procurement. Confirm that the 5A current rating aligns with the load specifications of the target circuit. Ensure the DIN rail mounting type is compatible with the existing panel infrastructure. Check for updated regulatory compliance documentation if required by local standards.

Power Line Filter Modules Selection Notes

Select this model for single-phase applications requiring active filtering capabilities. Consider the physical dimensions when planning enclosure space. Evaluate the thermal environment to ensure operation remains within the specified -40°C to 50°C range. Compare against passive filters if cost or size constraints are critical factors.

Power Line Filter Modules Part Context

This component belongs to the STFE Elite Series, which focuses on power conditioning and surge protection. The series is engineered to address industrial power quality issues such as blackouts and surges. It complements other SolaHD products like the SLAC series surge protectors by providing targeted noise filtration for sensitive electronic loads.

Power Line Filter Modules Replacement Considerations

Consult official SolaHD substitution guides for verified equivalents. Generic replacements may lack the active tracking functionality. Verify pin compatibility and electrical ratings before swapping components.

Power Line Filter Modules FAQ

What is the primary function of the STFE050-10N?

It acts as an active tracking filter to suppress electromagnetic interference (EMI) and radio frequency interference (RFI) in single-phase power lines.

How is the STFE050-10N mounted?

The unit is designed for DIN rail mounting, allowing for easy installation in standard industrial control panels.
