STFE200-24L

Power Line Filter Modules Overview

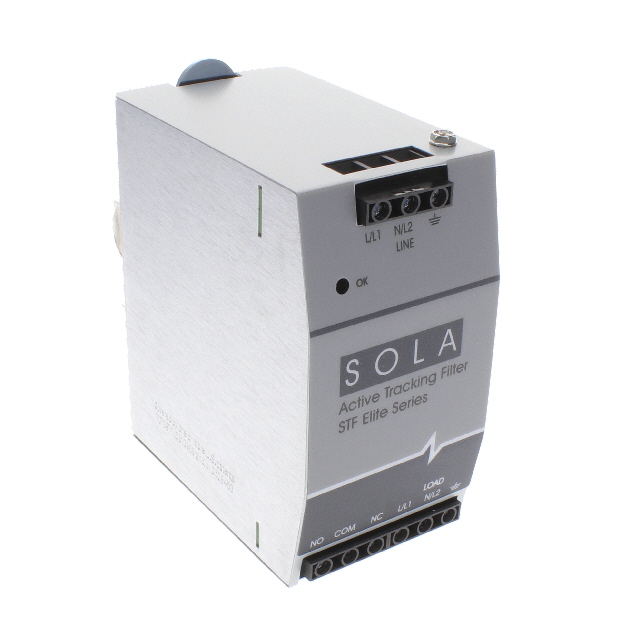

The SolaHD STFE200-24L is a single-phase active tracking EMI filter designed for DIN rail mounting. It operates at 240VAC with a continuous current rating of 20A and supports frequencies from 47Hz to 63Hz. The unit integrates a surge protection device rated for 45kA suppression. It utilizes Series Connected Active Tracking technology to provide high-frequency noise filtering while maintaining low insertion loss. The design includes touch-proof terminations and accepts wire sizes up to 12 AWG.

Power Line Filter Modules Feature Summary

• Integrates active tracking EMI filtering with built-in surge protection
• Provides high-frequency electrical noise attenuation
• Features series-connected active tracking architecture
• Includes integrated surge suppression device

Power Line Filter Modules Applications

• Industrial power supply circuit EMC filtering
• DIN rail mounted power conditioning systems
• Equipment requiring integrated surge protection and noise filtration

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct voltage and current ratings. Confirm that the application environment falls within the specified operating temperature range of -40°C to 50°C. Ensure the DIN rail type matches the mounting requirements. Check for updated compliance certifications such as CE or cURus before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when both EMI filtering and surge protection are required in a single DIN rail module. The 20A rating suits moderate load applications. Verify that the single-phase 240VAC input matches the system voltage. Consider the 45kA surge rating for environments with significant transient risks. Ensure the 12 AWG wire size compatibility fits the existing wiring infrastructure.

Power Line Filter Modules Part Context

This model belongs to the SolaHD STF Elite DIN Rail Mount Series, which combines active tracking filters with surge protection. The series is designed for industrial power conditioning where space efficiency and integrated protection are prioritized. It replaces separate filter and surge protector installations by consolidating functions into one compact unit.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for compatible single-phase active tracking filters with similar 20A ratings and DIN rail mounting. Verify that any substitute maintains the 45kA surge suppression capability and 240VAC operational voltage. Ensure physical dimensions and terminal configurations match the existing installation constraints.
