STFV050-10N

Power Line Filter Modules Overview

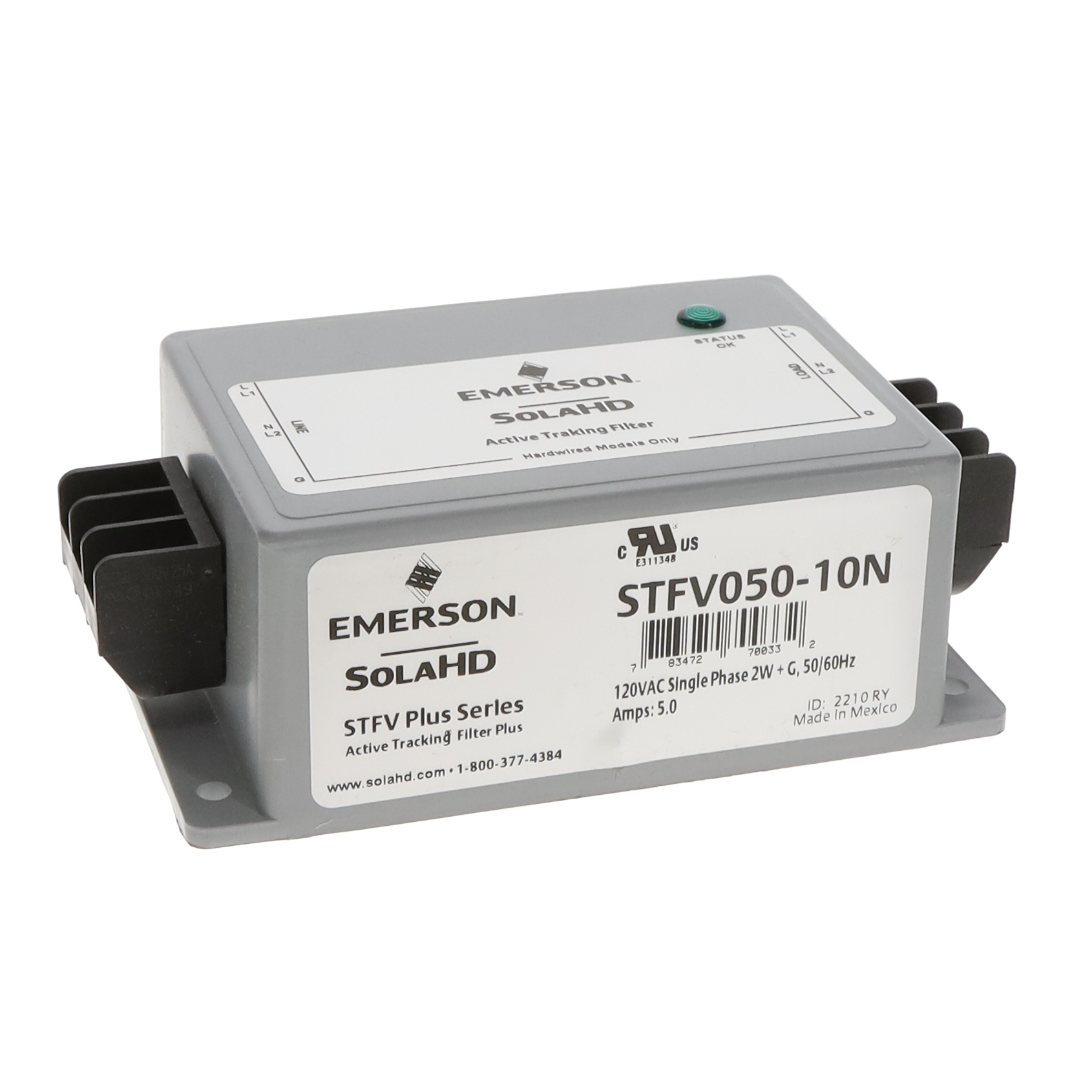

The SolaHD STFV050-10N is a single-phase power line filter module designed for chassis mounting. It features a terminal block termination style and operates at 50 Hz or 60 Hz frequencies. The unit has a voltage rating of 120 VAC and a current rating of 5 A. Certified by CSA and cURus, it functions as a single-stage filter within the power condition subcategory.

Power Line Filter Modules Feature Summary

• Continuously tracks input AC power lines to respond instantly to extraneous high-frequency noise and high-voltage transients
• Provides integrated surge protection alongside EMI/EMI filtering capabilities
• Constructed for hardwired single-phase configuration in industrial control environments

Power Line Filter Modules Applications

• Industrial control systems requiring single-phase power conditioning
• Protection against high-frequency noise on AC power lines
• Mitigation of high-voltage transients in sensitive electronic equipment

Power Line Filter Modules Procurement Notes

Verify the manufacturer part number STFV050-10N against official SolaHD documentation to confirm specifications. Ensure compatibility with 120 VAC single-phase systems and chassis mounting requirements. Check for CSA and cURus certification marks relevant to your region's safety standards before procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-stage, single-phase filter is required for 5 A applications. Confirm that chassis mounting and terminal block termination align with the system design. Verify that the 120 VAC rating matches the operational voltage of the target circuit.

Power Line Filter Modules Part Context

This component belongs to the SolaHD STFV Plus series of tracking filters. These modules are engineered for industrial power quality improvement, combining filtering and surge suppression in a compact form factor suitable for integration into control panels and machinery.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available in the provided source data.
