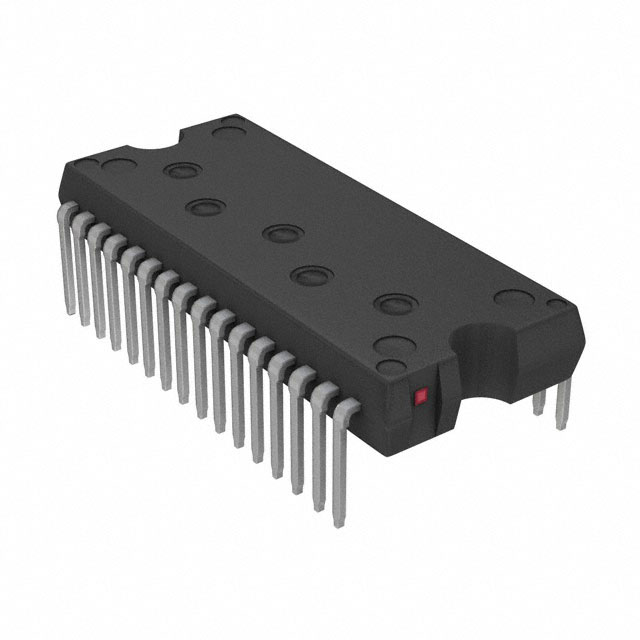

STGIPQ5C60T-HL

Overview

The STGIPQ5C60T-HL is a second-generation SLLIMM-nano Intelligent Power Module (IPM) designed for compact, high-performance AC motor drives. It integrates six improved short-circuit rugged trench gate field-stop IGBTs with freewheeling diodes and three half-bridge HVICs for gate driving. The module supports 3-phase inverter bridge configurations with a maximum collector-emitter voltage of 600 V and a continuous collector current of 5 A. Key electrical features include optimized switching speed for low electromagnetic interference, undervoltage lockout, and an internal bootstrap diode.

Feature Summary

• Integrates short-circuit rugged TFS IGBTs with freewheeling diodes and half-bridge HVICs for gate driving
• Includes uncommitted operational amplifier and comparator for advanced current sensing and fault protection
• Features optimized pinout for easy board layout and thermal performance suitable for built-in motors
• Provides hardware protections including undervoltage lockout, shutdown function, and interlocking

Applications

• Built-in motor applications
• Low-power applications with limited assembly space
• Compact AC motor drive systems

Procurement Notes

Verify the specific ordering suffix to ensure correct package and isolation ratings. Confirm that the component meets required UL recognition standards, specifically file E81734 under UL 1557. Check datasheet for NTC temperature control specifications and isolation ratings of 1800 Vrms/min before finalizing procurement specifications.

Selection Notes

Select this IPM for designs requiring a rugged, compact solution for 3-phase inverters where space is constrained. It is suitable when integrated gate driving and protection logic are preferred over discrete components. Ensure the application benefits from the low EMI characteristics provided by optimized switching speeds and the simplified board layout enabled by the integrated op-amp and comparator functions.

Part Context

This component belongs to the SLLIMM-nano 2nd series, which focuses on small size and low loss for intelligent power modules. It complements STMicroelectronics' broader portfolio of IGBTs and MOSFETs, targeting the growing demand for efficient, integrated motor control solutions in consumer and industrial appliances.

Replacement Considerations

Check for STGIPQ5C60T-HZ if MOSFET technology is acceptable instead of IGBT. Verify compatibility with STIPQ5M60T-HZ for similar form factors but different semiconductor types.
