Product Detailed Parameters
- Description：IGBT TRENCH FS 650V 80A TO247
- Series：HB
- Mfr：STMicroelectronics
- Package：Tube
- IGBT Type：Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max)：650 V
- Current - Collector (Ic) (Max)：80 A
- Current - Collector Pulsed (Icm)：160 A
- Vce(on) (Max) @ Vge, Ic：2V @ 15V, 40A
- Power - Max：283 W
- Switching Energy：498µJ (on), 363µJ (off)
- Input Type：Standard
- Gate Charge：210 nC
- Td (on/off) @ 25°C：40ns/142ns
- Test Condition：400V, 40A, 5Ohm, 15V
- Reverse Recovery Time (trr)：62 ns
- Operating Temperature：-55°C ~ 175°C (TJ)
- Mounting Type：Through Hole
- Package / Case：TO-247-3
- Supplier Device Package：TO-247 Long Leads
- Grade：-
- Qualification：-
Download product information
Overview

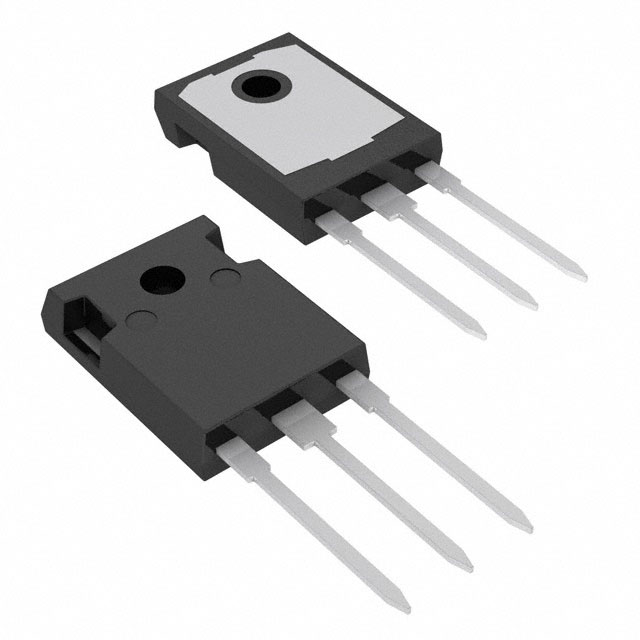

The STGWA40H65DFB is a high-speed IGBT from the HB series, utilizing an advanced trench gate field-stop structure. It features a collector-emitter voltage of 650 V and a continuous collector current of 40 A at TC = 100 °C (80 A at TC = 25 °C). The typical saturation voltage is 1.6 V at IC = 40 A. It includes a co-packaged antiparallel diode with a forward voltage of 1.7 V at IF = 40 A. The device operates up to a maximum junction temperature of 175 °C and is housed in a TO-247 long leads package.
Feature Summary
- Advanced trench gate field-stop structure for optimized conduction and switching loss
- Positive VCE(sat) temperature coefficient enabling safer paralleling operation
- Very fast soft recovery antiparallel diode minimizing tail current
- Tight parameter distribution across units
Applications
- Solar inverters (string and central)
- AC-DC converters
- Frequency converters
Procurement Notes
Verify the specific datasheet revision against the manufacturing date code on the component marking. Confirm that the TO-247 long leads package dimensions match the target PCB footprint requirements. Ensure the ordering suffix corresponds to the required packing format before finalizing procurement orders.
Selection Notes
Select this component when designing circuits requiring high efficiency at moderate power levels. The positive temperature coefficient of the saturation voltage facilitates parallel connection without active current balancing. Verify that the thermal management system can handle the specified power dissipation limits at the intended operating case temperatures.
Part Context
This part belongs to the STMicroelectronics HB series of IGBTs. It shares the same trench gate field-stop technology as other members in the family but is rated for 40 A continuous current. It serves as a higher-current alternative to lower-rated variants within the same TO-247 long leads package lineup.
Replacement Considerations
Direct replacements include STGW40H65DFB-4 or STGWA100H65DFB2 if higher current ratings are acceptable. Verify pinout compatibility and thermal resistance characteristics before substituting.
