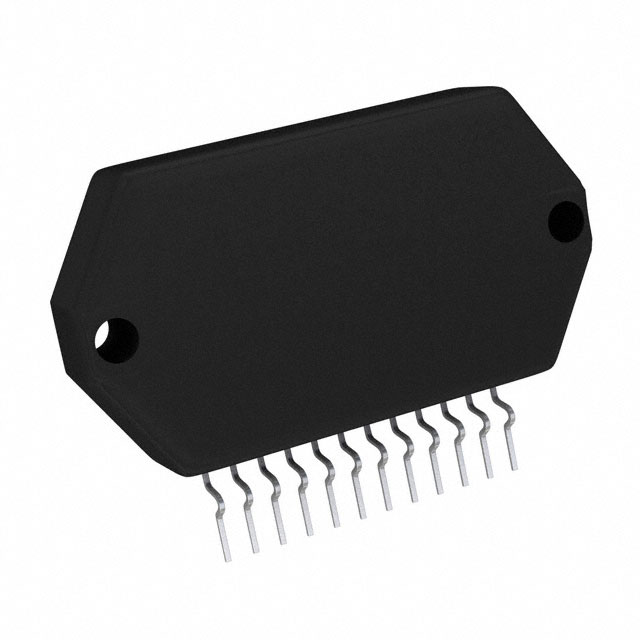

STK404-120N-E

Overview

The STK404-120N-E is a single-channel Class-AB audio power amplifier hybrid IC manufactured by onsemi. It utilizes insulated metal substrate technology (IMST) for miniaturization and features a low thermal resistance substrate. The device is designed for high-power audio applications, offering robust performance in a compact SIP package suitable for space-constrained consumer electronics.

Feature Summary

• Utilizes Sanyo's unique Insulated Metal Substrate Technology (IMST) to achieve significant miniaturization compared to earlier products with similar specifications.
• Incorporates a newly developed low thermal resistance substrate that enables the use of miniature packages while maintaining efficient heat dissipation.
• Consists of optimally designed discrete component power amplifier circuits integrated into a single hybrid IC structure.

Applications

• Audio power amplifier systems
• Consumer electronics requiring compact hybrid IC solutions

Procurement Notes

Verify the manufacturer designation carefully, as this component was originally developed by SANYO and is now distributed by onsemi. Confirm the specific suffix (e.g., N-E) matches your design requirements, as packaging and pinout details can vary between variants within the STK404 series. Ensure compatibility with existing thermal management designs due to the hybrid nature of the device.

Selection Notes

Select this component when a high-power, single-channel Class-AB amplifier is required in a form factor smaller than traditional discrete implementations. The IMST technology makes it suitable for designs where thermal efficiency and board space are critical constraints. Consider the hybrid construction for simplified thermal design compared to complex discrete assemblies.

Part Context

This part belongs to the STK404-000 series of audio power amplifier hybrid ICs. The series is characterized by its use of advanced substrate technologies to reduce size while maintaining high power output capabilities. Variants in this series typically range from lower power outputs up to higher wattage classes, all sharing similar architectural benefits regarding thermal management and integration density.

Replacement Considerations

Direct substitutes may include other parts from the STK404 series with compatible pinouts and power ratings, such as the STK404-140 or STK404-070, depending on the specific power requirement. Cross-reference pin configurations and thermal characteristics before substitution.
