STK760-216-E

Description：IC PFC CTRLR AVERAGE CURR 44DIP
Series：-
Mfr：onsemi
Package：Bulk

SKU:ac1df7163cde Category: PFC (Power Factor Correction) Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PFC CTRLR AVERAGE CURR 44DIP
Series：-
Mfr：onsemi
Package：Bulk
Mode：Average Current
Frequency - Switching：-
Voltage - Supply：14.5V ~ 17V
Operating Temperature：-20°C ~ 100°C
Mounting Type：Through Hole
Package / Case：44-DIP Module, 35 Leads
Supplier Device Package：44-DIP
Current - Startup：-
Grade：-
Qualification：-

Download product information

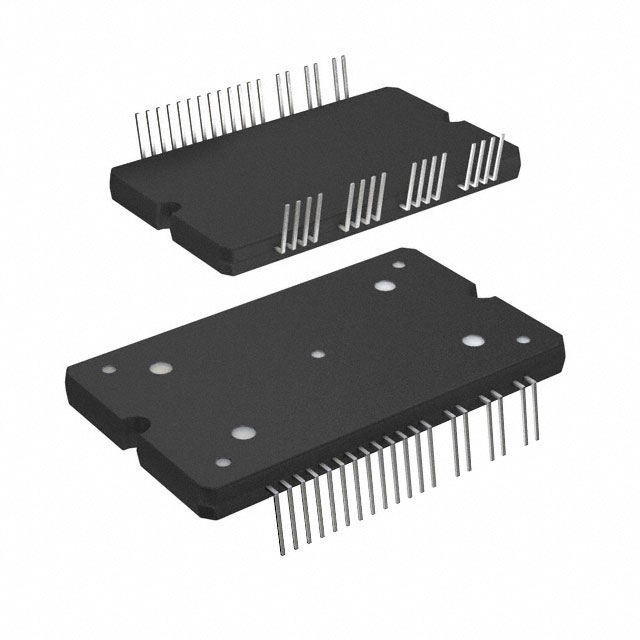

STK760-216-E

Overview

The STK760-216-E is a hybrid integrated circuit designed for active power factor correction in single-phase AC systems. It utilizes average current control topology to improve power factor efficiency. The device operates with an input voltage range of 14.5V to 17V and delivers a maximum output voltage of 380V. It is housed in a 44-DIP module package with 35 leads, suitable for through-hole mounting. The component supports an operating temperature range from -20°C to 100°C.

Feature Summary

Hybrid IC design integrating control logic and power devices
Average current mode control for improved power factor
Optimized for single-phase AC power supply applications

Applications

Single-phase active power factor correction
Industrial AC power supply systems
Power factor improvement modules

Procurement Notes

Verify the specific datasheet revision and manufacturer documentation when sourcing this component. Confirm that the 44-DIP module package matches your PCB footprint requirements. Ensure the thermal management solution accommodates the specified operating temperature range of -20°C to 100°C. Cross-reference the pinout configuration with official onsemi documentation to prevent installation errors during assembly.

Selection Notes

Select this component for applications requiring compact hybrid solutions for single-phase PFC. The average current control mode offers stability for industrial environments. Consider the through-hole mounting type and DIP package dimensions during mechanical design. Verify input voltage compatibility within the 14.5V to 17V range for proper operation.

Part Context

This part belongs to onsemi's portfolio of power management integrated circuits. It is categorized under active converters and power factor correction devices. The hybrid nature combines analog control with high-power switching elements, providing a complete solution for AC line conditioning without requiring external discrete power transistors.
