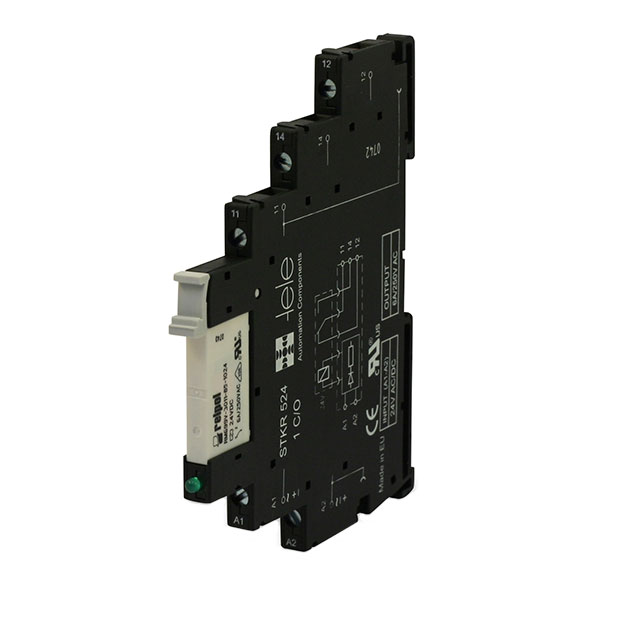

STKR 524

STKR 524 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Tele Haase. Its product description is RELAY GEN PURPOSE SPDT 6A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for STKR 524

• Description：RELAY GEN PURPOSE SPDT 6A 24V
• Series：STKR
• Mfr：Tele Haase
• Package：Box
• Mounting Type：DIN Rail
• Coil Voltage：24VAC/DC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：8:00 AM
• Switching Voltage：400VAC, 250VDC - Max
• Load - Max Switching：-
• Coil Current：-
• Coil Type：Non Latching
• Features：Diode, Lighted Indicator
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：19.2 VAC/DC
• Must Release Voltage：4.8 VAC/DC
• Operating Temperature：-40°C ~ 55°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：-
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：8 ms
• Release Time：10 ms
