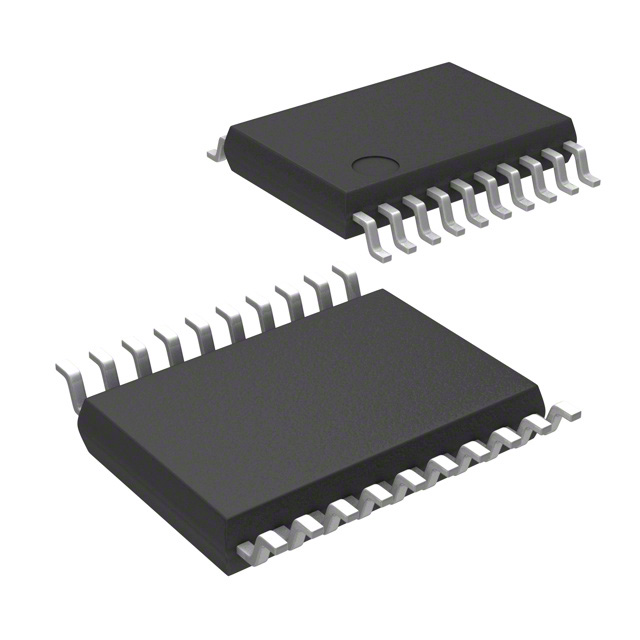

STM32F042F6P6 is listed in the Microcontrollers range at ChipApex. The manufacturer field lists STMicroelectronics. Its product description is IC MCU 32BIT 32KB FLASH 20TSSOP. Review the specifications below when checking this part for your BOM.
Microcontrollers specifications for STM32F042F6P6
- Description：IC MCU 32BIT 32KB FLASH 20TSSOP
- Series：STM32F0
- Mfr：STMicroelectronics
- Package：Tube
- Core Processor：ARM® Cortex®-M0
- Core Size：32-Bit Single-Core
- Speed：48MHz
- Connectivity：CANbus, HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB
- Peripherals：DMA, I2S, POR, PWM, WDT
- Number of I/O：16
- Program Memory Size：32KB (32K x 8)
- Program Memory Type：FLASH
- EEPROM Size：-
- RAM Size：6K x 8
- Voltage - Supply (Vcc/Vdd)：1.65V ~ 3.6V
- Data Converters：A/D 12x12b
- Oscillator Type：Internal
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：20-TSSOP
- Package / Case：20-TSSOP (0.173", 4.40mm Width)
- Grade：-
- Qualification：-
Microcontrollers datasheet and documents for STM32F042F6P6
Microcontrollers Overview
The STM32F042F6P6 is a microcontroller based on the ARM Cortex-M0 core, operating at frequencies up to 48 MHz. It features 32 Kbytes of Flash memory and 6 Kbytes of SRAM with hardware parity. The device includes a crystal-less USB Full-speed interface, CAN bus support, and an HDMI CEC controller. Peripheral sets include one 12-bit ADC, nine timers, two SPIs, two USARTs, and one I2C interface. It operates within a voltage range of 2.0 V to 3.6 V and utilizes a TSSOP20 package.
Microcontrollers Feature Summary
- Integrates a high-performance ARM Cortex-M0 32-bit RISC core with up to 48 MHz frequency.
- Includes a crystal-less USB Full-speed device interface capable of running from the internal 48 MHz oscillator.
- Features a comprehensive set of communication interfaces including CAN, HDMI CEC, SPI, I2S, and USART.
- Provides embedded reset and power management with low-power modes such as Sleep, Stop, and Standby.
Microcontrollers Applications
- Communication gateways
- Smart energy devices
- Gaming terminals
Microcontrollers Procurement Notes
Verify the specific part number against official STMicroelectronics documentation to ensure compatibility with the intended application requirements. Confirm that the ordering suffix matches the required package type and temperature range specifications before procurement.
Microcontrollers Selection Notes
Select this component for applications requiring integrated USB and CAN connectivity without external crystal oscillators. Consider the 32 Kbytes of Flash and 6 Kbytes of SRAM capacity relative to software complexity. Ensure the design accommodates the 2.0 V to 3.6 V supply voltage range and the TSSOP20 package constraints.
Microcontrollers Part Context
This device belongs to the STM32F042x4/x6 series, which are mainstream Arm Cortex-M0 USB line microcontrollers. The series is designed for cost-sensitive applications requiring 32-bit performance, integrating real-time capabilities with low-power consumption and advanced peripheral sets typical of the STM32 platform.
Microcontrollers Replacement Considerations
STM32F042F4P6
