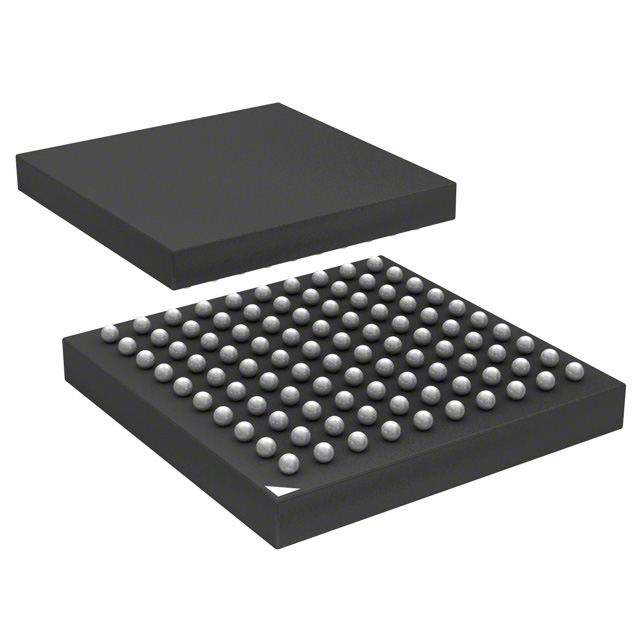

STM32F103VDH6 is listed in the Microcontrollers range at ChipApex. The manufacturer field lists STMicroelectronics. Its product description is IC MCU 32BIT 384KB FLSH 100LFBGA. Review the specifications below when checking this part for your BOM.
Microcontrollers specifications for STM32F103VDH6
- Description：IC MCU 32BIT 384KB FLSH 100LFBGA
- Series：STM32F1
- Mfr：STMicroelectronics
- Package：Tray
- Core Processor：ARM® Cortex®-M3
- Core Size：32-Bit Single-Core
- Speed：72MHz
- Connectivity：CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
- Peripherals：DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
- Number of I/O：80
- Program Memory Size：384KB (384K x 8)
- Program Memory Type：FLASH
- EEPROM Size：-
- RAM Size：64K x 8
- Voltage - Supply (Vcc/Vdd)：2V ~ 3.6V
- Data Converters：A/D 16x12b; D/A 2x12b
- Oscillator Type：Internal
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：100-LFBGA (10x10)
- Package / Case：100-LFBGA
- Grade：-
- Qualification：-
Microcontrollers datasheet and documents for STM32F103VDH6
Microcontrollers Overview
The STM32F103VDH6 is a high-density performance line microcontroller featuring an ARM Cortex-M3 core operating at 72 MHz. It integrates 384 kB of Flash memory and 64 kB of SRAM within an LFBGA-100 package. The device supports a supply voltage range of 2.0 V to 3.6 V and operates across temperature ranges of -40°C to +85°C or -40°C to +105°C. Peripheral interfaces include one USB full-speed device, one CAN channel, three SPIs, five USARTs, two I2Cs, three 12-bit ADCs, and six 16-bit timers.
Microcontrollers Feature Summary
- Integrates motor control peripherals including advanced PWM units for precise drive applications
- Combines high-performance real-time processing with low-power operation modes
- Provides extensive connectivity through integrated USB and CAN communication interfaces
Microcontrollers Applications
- Motor drives and industrial automation control
- PC and gaming peripheral systems
- HVAC controllers and medical equipment
Microcontrollers Procurement Notes
Verify the specific suffix against official STMicroelectronics documentation to confirm exact memory capacity and package variant. Ensure compatibility with required operating temperature ranges and interface configurations before procurement. Cross-reference datasheets for pinout accuracy in LFBGA-100 implementations.
Microcontrollers Selection Notes
Select this component for applications requiring substantial program storage alongside robust communication capabilities. The combination of USB and CAN interfaces suits complex embedded systems. Evaluate thermal requirements as the device supports extended temperature ranges suitable for industrial environments.
Microcontrollers Part Context
This part belongs to the STM32F103 high-density performance line family. These devices are designed for demanding embedded applications requiring significant code space and data handling. The architecture ensures software compatibility with other members of the STM32F103 series.
Microcontrollers Replacement Considerations
Consult official substitution lists for verified equivalents. Verify pin-to-pin compatibility and memory specifications when considering alternative packages or updated revisions.
