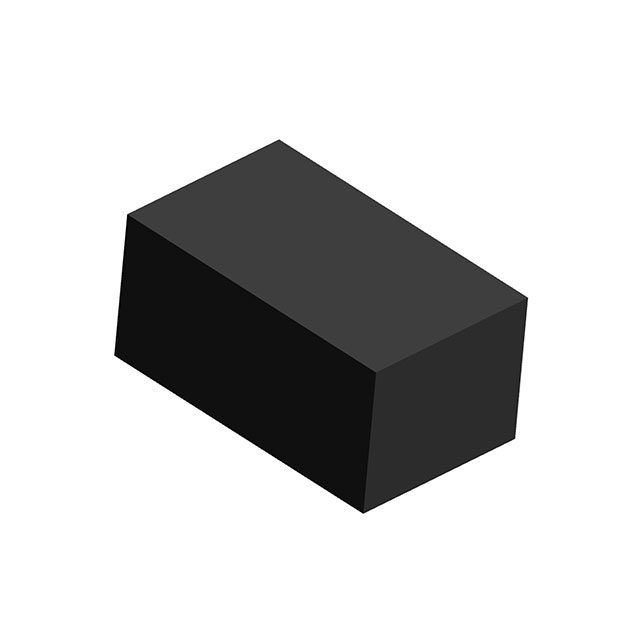

Tvs Diodes STN101050B101 product image

STN101050B101

$0.18

Description：TVS DIODE 5VWM 13VC DFN1006-2L
Series：ST
Mfr：Eaton - Electronics Division
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:49804a68717d Category: TVS Diodes Brand: Eaton - Electronics Division

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

STN101050B101 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is TVS DIODE 5VWM 13VC DFN1006-2L. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for STN101050B101

Description：TVS DIODE 5VWM 13VC DFN1006-2L
Series：ST
Mfr：Eaton - Electronics Division
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Zener
Bidirectional Channels：1
Voltage - Reverse Standoff (Typ)：5V (Max)
Voltage - Breakdown (Min)：5.5V
Voltage - Clamping (Max) @ Ipp：13V
Current - Peak Pulse (10/1000µs)：8A (8/20µs)
Power - Peak Pulse：100W
Power Line Protection：No
Applications：General Purpose
Capacitance @ Frequency：10pF @ 1MHz
Operating Temperature：-55°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：0402 (1006 Metric)
Supplier Device Package：DFN1006-2L
Unidirectional Channels：-
Grade：-
Qualification：-

Tvs Diodes datasheet and documents for STN101050B101

STN101050B101
