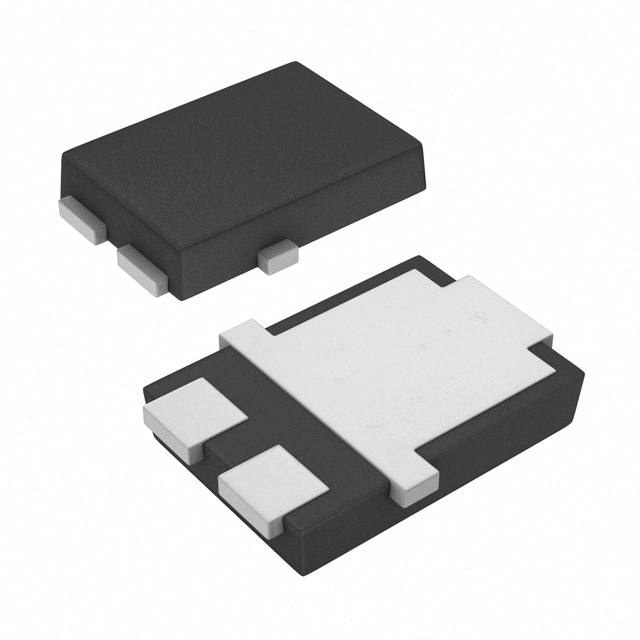

STPS5H100SFY is listed in the Single Diodes range at ChipApex. The manufacturer field lists STMicroelectronics. Its product description is DIODE SCHOTTKY 100V 5A TO277A. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for STPS5H100SFY
- Description：DIODE SCHOTTKY 100V 5A TO277A
- Series：ECOPACK®2
- Mfr：STMicroelectronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：100 V
- Current - Average Rectified (Io)：5A
- Voltage - Forward (Vf) (Max) @ If：-
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：8 µA @ 100 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：TO-277, 3-PowerDFN
- Supplier Device Package：TO-277A (SMPC)
- Operating Temperature - Junction：-40°C ~ 175°C
- Grade：Automotive
- Qualification：AEC-Q101
Single Diodes datasheet and documents for STPS5H100SFY
Single Diodes Overview
The STPS5H100SFY is a 100 V, 5 A automotive-grade power Schottky rectifier designed for high-frequency applications. It features negligible switching losses and low leakage current within the PSMC (TO-277A) package. The device supports a maximum junction temperature of 175 °C with VRRM guaranteed across the -40 °C to +175 °C range. Key electrical parameters include an average forward current of 5 A, a typical forward voltage drop of 0.545 V at 125 °C, and a reverse leakage current of 8 µA at 25 °C.
Single Diodes Feature Summary
- AEC-Q101 qualified and PPAP capable for automotive integration
- Specified avalanche capability for robust operation
- Wettable flanks enable automatic visual inspection
- Compliant with ECOPACK®2 environmental standards
Single Diodes Applications
- DC/DC converters
- Reverse polarity protection
- Freewheeling diodes
- Switching diodes
Single Diodes Procurement Notes
Verify component authenticity by checking the marking code S5H100Y against official datasheet specifications. Confirm the package type is PSMC (TO-277A) and ensure compliance with AEC-Q101 requirements for your specific automotive application context. Cross-reference ordering codes to avoid substitution errors.
Single Diodes Selection Notes
Select this component when designing circuits requiring high junction temperature tolerance up to 175 °C and low conduction losses. The specified avalanche capability makes it suitable for inductive load environments. Ensure thermal management strategies account for the Rth(j-c) parameter to maintain reliability under continuous operating conditions.
Single Diodes Part Context
This part belongs to the STPS5H series of high-voltage Schottky barrier rectifiers manufactured by STMicroelectronics. It utilizes the PSMC (TO-277A) surface-mount package to provide a compact footprint while maintaining high performance characteristics suitable for modern electronic systems.
Single Diodes Replacement Considerations
STPS5H100SF is a non-automotive equivalent in the same package. Verify if AEC-Q101 qualification and PPAP capability are mandatory for your design before considering alternatives.
