Product Detailed Parameters
- Description：IC TUNABLE CAP RF BST 4WLCSP
- Series：Parascan™
- Mfr：STMicroelectronics
- Package：Tape & Reel (TR)
- Function：Analog Tunable Capacitor
- Frequency：700MHz ~ 2.7GHz
- RF Type：GSM, LTE, W-CDMA
- Secondary Attributes：-
- Mounting Type：Surface Mount
- Package / Case：4-UFBGA, WLCSP
- Supplier Device Package：4-WLCSP
- Grade：-
- Qualification：-
Download product information
Overview

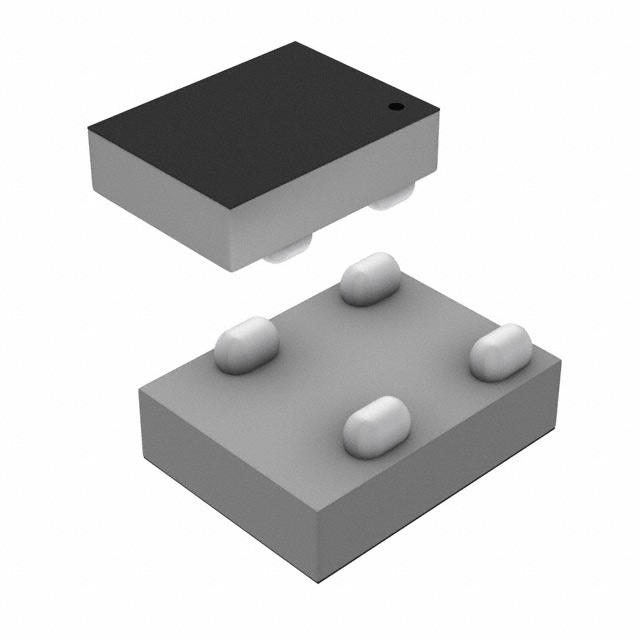

The STPTIC-68G2C5 is a Parascan tunable integrated capacitor manufactured by STMicroelectronics. It features a fixed capacitance of 6.8 pF and supports a 5:1 tuning range. The device is housed in a 4-WLCSP package with solder ball surface mount technology. It operates within a maximum temperature range of 125 °C and is RoHS compliant. This component is designed for adaptive RF tuning applications, offering high power capability and high linearity.
Feature Summary
- High power handling capability
- High linearity performance
- Adaptive RF tuning suitability
Applications
- Adaptive RF tuning systems
- RF front-end matching networks
- Wireless communication transceivers
Procurement Notes
Verify the obsolete lifecycle status before procurement planning. Confirm availability through authorized distributors as direct sales may be restricted in certain regions. Ensure the 4-WLCSP package compatibility with PCB layout requirements. Check RoHS compliance documentation for regulatory adherence. Validate thermal specifications against system operating conditions.
Selection Notes
Select this component for applications requiring precise RF impedance matching with low power consumption. The 6.8 pF base capacitance suits specific frequency bands. Consider the 5:1 tuning range for variable load environments. The WLCSP package offers compact footprint advantages. Evaluate thermal limits for high-temperature operational scenarios.
Part Context
Part of the STPTIC-68G2 Parascan family of tunable capacitors. Designed to replace fixed capacitors in dynamic RF circuits. Enables miniaturization of antenna tuning units. Complements other STMicroelectronics RF interface solutions. Provides integration benefits over discrete variable capacitor arrays.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with STPTIC-82G2C4 or STPTIC-56G2C5 only if capacitance differences are acceptable. Verify package and pinout compatibility before substitution.
