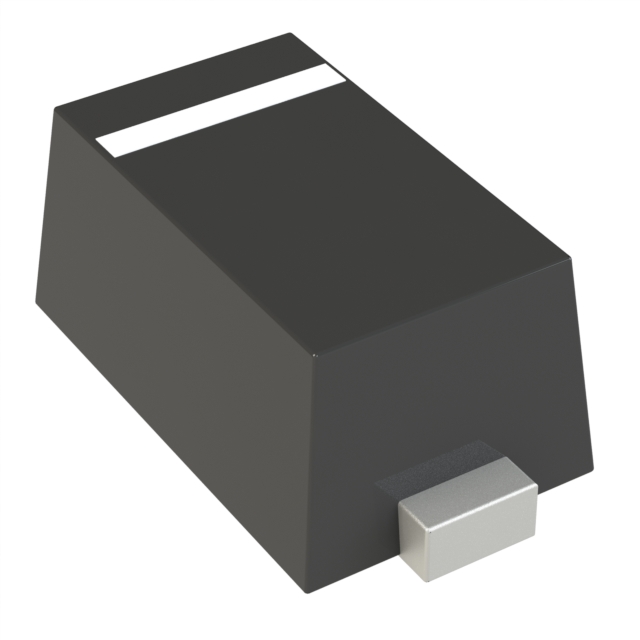

Tvs Diodes STS521033B101AH product image

STS521033B101AH

$0.39

Description：TVS DIODE 3.3VWM 12VC SOD523
Series：ST_AH
Mfr：Eaton - Electronics Division
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:74b36fda1f22 Category: TVS Diodes Brand: Eaton - Electronics Division

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

STS521033B101AH is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is TVS DIODE 3.3VWM 12VC SOD523. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for STS521033B101AH

Description：TVS DIODE 3.3VWM 12VC SOD523
Series：ST_AH
Mfr：Eaton - Electronics Division
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Zener
Bidirectional Channels：1
Voltage - Reverse Standoff (Typ)：3.3V (Max)
Voltage - Breakdown (Min)：3.6V
Voltage - Clamping (Max) @ Ipp：12V
Current - Peak Pulse (10/1000µs)：7A (8/20µs)
Power - Peak Pulse：80W
Power Line Protection：No
Applications：CAN, Ethernet, Telecom
Capacitance @ Frequency：10pF @ 1MHz
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：SC-79, SOD-523
Supplier Device Package：SOD-523
Unidirectional Channels：-
Grade：Automotive
Qualification：AEC-Q101

Tvs Diodes datasheet and documents for STS521033B101AH
