STSPIN32G0A2TR

Overview

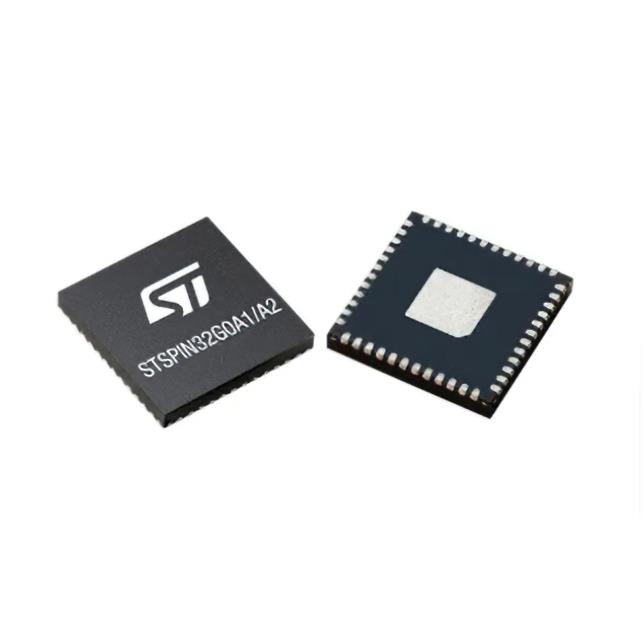

The STSPIN32G0A2TR is a highly integrated system-in-package designed for driving three-phase brushless DC motors. It embeds an STM32G031x8 microcontroller and a triple half-bridge gate driver with 600 mA sink/source current capability. The device operates within a supply voltage range of 6.7 V to 45 V, featuring an internal DC-DC buck converter providing 3.3 V for the MCU and external components. It supports Field Oriented Control (FOC) and 6-step sensorless algorithms. Key electrical parameters include a maximum operating temperature of +125 °C, minimum of -40 °C, and standby power consumption of 2.5 mA. The package is VFQFPN-48.

Feature Summary

• Integrates an STM32G031x8 MCU with Arm Cortex-M0+ core for advanced motor control algorithms including FOC and speed loops.
• Features a triple half-bridge gate driver with integrated interlocking, deadtime, and anti-cross-conduction protection.
• Includes internal DC-DC buck converter and LDO regulator for efficient power management and stable supply voltages.
• Provides comprehensive protection mechanisms such as overtemperature, undervoltage lockout, and comparator-based overcurrent detection.

Applications

• Three-phase brushless DC motor drives
• Permanent Magnet Synchronous Motor (PMSM) control systems
• Smart home appliance motor control modules

Procurement Notes

Verify the specific suffix 'A2' against the official STMicroelectronics datasheet to confirm the exact pinout, memory configuration, and feature set, as variations exist within the STSPIN32G0 family. Ensure the component is sourced from authorized distributors to guarantee authenticity and traceability. Confirm that the VFQFPN-48 package type matches the PCB footprint requirements. Check RoHS compliance status in the latest product documentation before finalizing procurement.

Selection Notes

Select this component when a compact solution combining a 32-bit ARM Cortex-M0+ MCU with high-current gate drivers is required. It is suitable for applications needing FOC or sensorless control without external logic decoders. Consider the 600 mA drive current and 45 V max voltage limits. Evaluate the available GPIOs and ADC channels against application signal conditioning needs. Compare with other STSPIN32G0 variants if different memory sizes or peripheral counts are preferred.

Part Context

The STSPIN32G0A2TR belongs to the STSPIN32G0 family, which offers scalable solutions for three-phase motor control. This family reduces Bill of Materials (BOM) and board area by integrating power stages and control logic into a single package. It targets mainstream applications requiring robust performance and ease of integration. The series supports various driving modes and includes features like embedded bootloader and flash protection for secure firmware updates.

Replacement Considerations

STSPIN32G0A1 is a related variant within the same family offering similar integration but potentially different resource allocation or feature sets. Verify pin-to-pin compatibility and functional equivalence before substitution. Other STSPIN32 series members may offer different voltage ratings or current capabilities.
