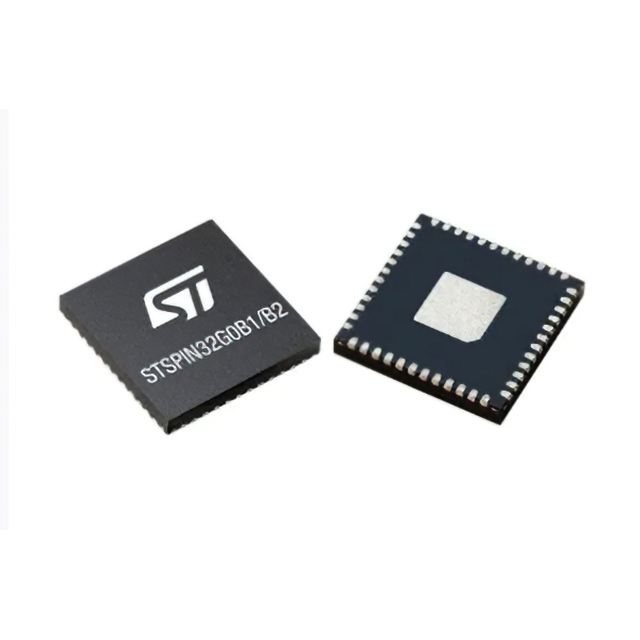

STSPIN32G0B1TR

Overview

The STSPIN32G0B1TR is a highly integrated system-in-package solution designed for driving three-phase brushless DC (BLDC) motors. It combines an STM32G0 microcontroller based on the Arm Cortex-M0+ core with a three-phase gate driver and power management circuitry. The device operates within a supply voltage range of 6.7 V to 45 V and supports output currents up to 600 mA. Key electrical parameters include a maximum operating frequency of 64 MHz, a quiescent current of 2.5 mA, and a 3.3 V output voltage. It features a VFQFPN-48 package suitable for surface mount installation and functions reliably across temperatures from -40°C to +125°C.

Feature Summary

• Integrates an STM32G0 microcontroller with a three-phase gate driver in a single compact package
• Supports advanced control algorithms including six-step commutation and field-oriented control
• Includes built-in protection mechanisms against over-temperature, over-current, and under-voltage conditions

Applications

• Battery-operated appliances
• Power tools
• Industrial automation systems
• Robotics applications
• HVAC systems

Procurement Notes

Verify the specific suffix 'TR' indicates tape and reel packaging when sourcing components. Confirm that the VFQFPN-48 package matches the target PCB footprint requirements. Ensure compatibility with the intended motor voltage range between 6.7 V and 45 V. Check humidity sensitivity handling procedures during assembly. Validate that the 600 mA output current rating meets the peak load demands of the application.

Selection Notes

Select this component when space constraints require combining MCU and driver functions into one unit. It is suitable for designs needing FOC or six-step control without external logic. Consider the 45 V rating limit for low-voltage motor applications. Evaluate the thermal performance of the VFQFPN-48 package for the expected operating environment. Compare against other STSPIN series variants if higher voltage ratings are required.

Part Context

This part belongs to the STSPIN32G0 series, which targets industrial and home appliance markets. The series aims to simplify design by integrating general-purpose MCUs with feature-rich gate drivers. It reduces bill-of-materials count and PCB area compared to discrete solutions. The family includes devices rated for 45 V, 250 V, and 600 V to cover various motor control needs.

Replacement Considerations

STSPIN32G0B2 is a related variant within the same series offering similar integration levels.
