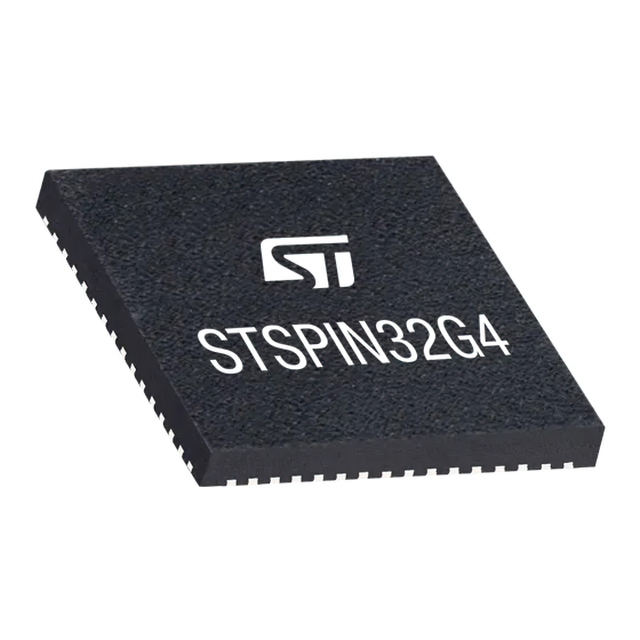

STSPIN32G4

Overview

The STSPIN32G4 is a high-performance, highly integrated motor controller designed for driving three-phase brushless DC motors. It combines a triple half-bridge gate driver with an embedded STM32G431VBx3 microcontroller featuring an ARM Cortex-M4 core operating up to 170 MHz. The device supports a supply voltage range of 5.5 V to 75 V and provides a 1 A sink/source current capability per phase. It includes programmable buck regulators for VCC selection (8 V, 10 V, 12 V, or 15 V) and a 3.3 V LDO. The package is a 64-VFQFPN (9x9 mm), and it operates within a temperature range of -40°C to +125°C.

Feature Summary

• Integrates a 32-bit ARM Cortex-M4 MCU with FPU, DSP instructions, and hardware accelerators like CORDIC and FMAC for advanced motor control algorithms.
• Features a flexible self-supplied power management structure that generates all necessary internal voltages from the external motor supply voltage.
• Includes comprehensive protection mechanisms such as hardware VDS monitoring, interlocking functions, thermal shutdown, short-circuit, overload, and undervoltage lockout.
• Supports simultaneous control of two motors from the same MCU and offers a standby mode with ultra-low quiescent current.

Applications

• Home automation systems
• Drones and UAVs
• Air purifiers and ventilation fans
• Battery-powered garden tools

Procurement Notes

Verify the specific ordering suffix to confirm the packaging type, as the base part number may be available in both tray and tape-and-reel formats. Ensure compatibility with the target application's voltage requirements, noting the 5.5 V to 75 V input range. Confirm that the 64-VFQFPN footprint matches the PCB layout constraints. Check for RoHS compliance and AEC-Q100 qualification status if automotive applications are considered. Validate that the embedded STM32G431 memory sizes meet the firmware storage needs.

Selection Notes

Select this component when a single-chip solution for three-phase BLDC motors is required to minimize bill of materials and PCB area. It is suitable for designs needing high integration of power management and digital control logic. Consider the 170 MHz processing speed and available peripherals like ADCs, comparators, and PWM timers for complex control loops. Evaluate the need for simultaneous dual-motor control capabilities. Ensure the operating temperature range of -40°C to +125°C aligns with the environmental conditions of the end product.

Part Context

The STSPIN32G4 belongs to the STSPIN series of motor drivers from STMicroelectronics, specifically targeting high-efficiency and high-integration applications. It leverages the STM32G4 microcontroller family, known for its performance in motion control and industrial applications. This device represents a shift towards consolidating gate driving, power regulation, and MCU functions into a single compact package, reducing design complexity compared to discrete solutions.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the source material. Designers should consult official STMicroelectronics documentation for direct pin-to-pin compatible alternatives or updated revisions within the STSPIN32G4 product line.

FAQ

How does the STSPIN32G4 handle power supply generation?

It features a fully self-supplied power management structure. An embedded programmable buck regulator generates gate driver supplies from the motor voltage, while an internal LDO creates a 3.3 V supply for the MCU and logic. Both can be bypassed if external supplies are preferred.

What protection features are included in the device?

The device includes hardware VDS monitoring for overvoltage detection on external MOSFETs, integrated interlocking to prevent shoot-through, and protections against short-circuit, overload, and undervoltage conditions. Thermal shutdown is also supported.

Can the STSPIN32G4 control more than one motor?

Yes, the embedded STM32G431 microcontroller has sufficient resources to control two motors simultaneously from the same chip, enhancing system integration for multi-axis applications.
