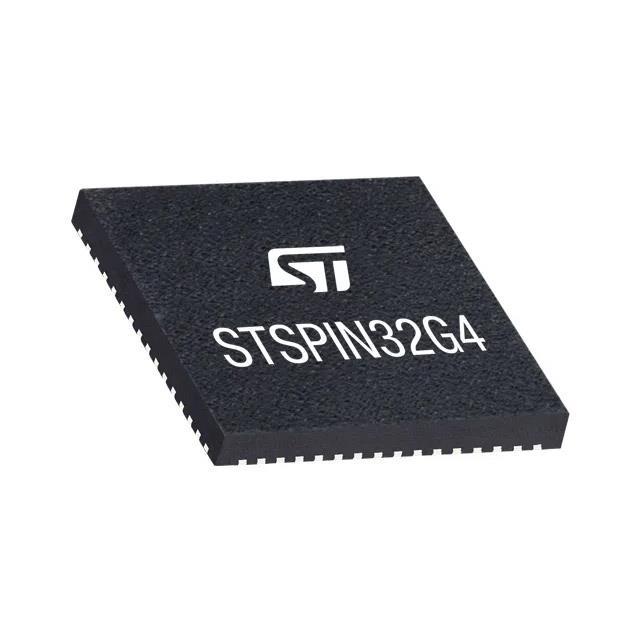

STSPIN32G4TR

Overview

The STSPIN32G4TR is a high-performance, highly integrated 3-phase motor controller designed for driving brushless DC motors. It embeds an STM32G431VBx3 microcontroller based on the ARM Cortex-M4 core with FPU and DSP capabilities. The device features a triple half-bridge gate driver rated at 75V and 1A sink/source current, alongside flexible power management including a programmable buck regulator and LDO. It supports self-supplied operation from a 5.5V to 75V motor supply voltage.

Feature Summary

• Integrates an STM32G431 MCU with advanced motor control peripherals such as PWM timers, ADCs, and comparators.
• Includes a robust 3-phase gate driver with hardware interlocking and real-time VDS overvoltage monitoring.
• Features comprehensive internal power management with programmable buck and LDO regulators for self-supply.
• Provides extensive protection mechanisms including thermal shutdown, short-circuit, overload, and undervoltage lockout.

Applications

• Home automation appliances
• Drones and UAVs
• Air purifiers
• Garden tools

Procurement Notes

Verify the specific suffix 'TR' indicates tape-and-reel packaging when sourcing. Confirm the embedded MCU variant matches project requirements, as the base part number may refer to tray packaging. Ensure compatibility with the 64-VFQFN package footprint during PCB layout. Check for RoHS compliance status in the latest datasheet revision before finalizing procurement.

Selection Notes

Select this component for designs requiring high integration of control logic and power driving in a compact form factor. It is suitable for applications needing simultaneous control of multiple motors or advanced algorithms via the embedded Cortex-M4. Consider the 9x9mm package size for space-constrained layouts. Evaluate the need for external MOSFETs, as the device only provides gate drive signals.

Part Context

This part belongs to the STSPIN32G4 family, which combines motor drive capabilities with an ARM Cortex-M4 microcontroller. The 'TR' suffix specifically denotes the tape-and-reel packaging format, distinct from the tray-packaged STSPIN32G4. This family targets Industry 4.0 applications and battery-driven systems requiring efficient, smart motor control solutions.

Replacement Considerations

Direct substitutes include the non-suffix STSPIN32G4, noting the difference in packaging (tray vs. reel). Other members of the STSPIN32G4 family may offer similar functionality but require verification of pinout and MCU configuration compatibility.
