STSPIN830

Overview

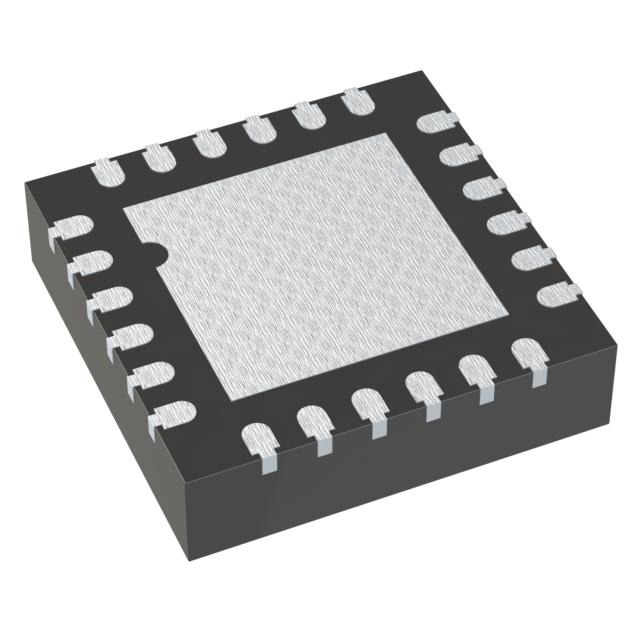

The STSPIN830 is a compact, versatile three-phase BLDC motor driver designed for Field Oriented Control (FOC) applications. It integrates control logic and a fully protected triple half-bridge power stage in a 24-TQFPN (4x4 mm) package. The device supports an operating voltage range of 7 V to 45 V with a maximum output current of 1.5 A rms. It features a typical RDSon of 1 Ω for the high-side and low-side MOSFETs combined. The STSPIN830 accommodates both single and three-shunt current sensing architectures, enabling flexible driving via six inputs or three PWM signals. It includes non-dissipative overcurrent protection, thermal shutdown, short-circuit protection, undervoltage lockout, and interlocking functions.

Feature Summary

• Integrates control logic and a fully protected triple half-bridge power stage in a compact 4x4 mm QFN package
• Supports Field Oriented Control (FOC) through compatibility with three-shunt current sensing topology
• Offers flexible driving methodology selectable between six individual inputs or three direct PWM inputs
• Embeds comprehensive protection mechanisms including non-dissipative overcurrent, thermal shutdown, and short-circuit protection

Applications

• Three-phase brushless DC (BLDC) motor control in industrial automation
• Field Oriented Control (FOC) implementations requiring precise torque management
• Embedded systems utilizing STM32 Nucleo expansion boards for motor drive development
• Applications demanding low standby current consumption and robust power stage protection

Procurement Notes

Verify the specific ordering suffix to confirm packaging type, such as tape-and-reel or cut tape, as these do not alter the functional characteristics. Confirm the component status is active before finalizing design-in decisions. Ensure that the selected package variant matches the PCB footprint requirements for the 24-TQFPN form factor. Cross-reference the manufacturer datasheet for any recent product change notices regarding manufacturing sources or assembly processes.

Selection Notes

Select this component when a small footprint is required for three-phase motor drives supporting FOC algorithms. It is suitable for designs needing flexible input configurations between direct PWM and individual switch control. Consider its integrated protection suite for applications requiring reliable operation under fault conditions without external discrete components. Evaluate the 1.5 A rms current capability against the specific motor load requirements.

Part Context

The STSPIN830 belongs to the STSPIN8 series of motor drivers from STMicroelectronics. It is part of a family focused on providing complete solutions for demanding industrial applications. The device complements other ST motor driver solutions by offering a balance of integration, protection, and flexibility within a minimal physical size, facilitating easier PCB layout and system miniaturization.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for potential cross-reference options if alternative sourcing is required.
