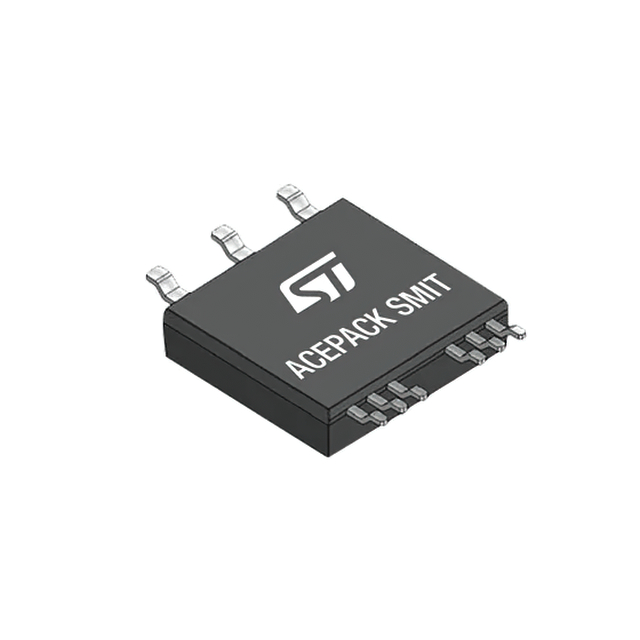

STTN6050H-12M1Y

$16.24

Description：60 A 1200 V THYRISTOR CONTROLLED
Series：-

SKU:5d5614459182 Category: SCRs Brand: STMicroelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：60 A 1200 V THYRISTOR CONTROLLED
Series：-
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)
Voltage - Off State：1.2 kV
Voltage - Gate Trigger (Vgt) (Max)：-
Current - Gate Trigger (Igt) (Max)：-
Current - Hold (Ih) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：600A
SCR Type：Standard Recovery
Operating Temperature：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：9-PowerSMD
Supplier Device Package：9-ACEPACK SMIT
Voltage - On State (Vtm) (Max)：-
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：60 A
Current - Off State (Max)：-

Download product information

STTN6050H-12M1Y

Overview

The STTN6050H-12M1Y is a thyristor controlled half bridge module in an ACEPACK SMIT package. It integrates two TN6050HP-12 dies in series, providing a 1200 V symmetrical blocking voltage and a nominal on-state RMS current of 60 A. The device supports an output full wave DC current up to 75 A AV and an AC input converter current up to 85 A RMS. It features a high junction temperature rating of 150 °C and static dV/dt immunity of 1000 V/μs. The module includes a 4000 V insulated tab-to-lead package with UL recognition.

Feature Summary

AEC-Q101 qualified automotive grade component compliant with AQG324 recommendations
High noise immunity with specified static dV/dt of 1000 V/μs at maximum junction temperature
SMD construction with isolated top cooled tab for fully automatic PCB mounting to heat sink
Large creepage distance designed to meet IEC 60664-1 insulation requirements

Applications

Single and tri-phase controlled rectifier bridges
AC phasing half bridge of a totem pole PFC
On-board and stationary battery chargers
Solid-state relays for heating control, bypass switches, and motor starters

Procurement Notes

Verify the specific ordering code STTN6050H-12M1Y against the manufacturer's latest datasheet DS13748 Rev 2 before procurement. Confirm that the ACEPACK SMIT package dimensions and recommended pressing force of 50 N align with your mechanical assembly specifications. Ensure the design accounts for the 4000 V insulated tab-to-lead isolation voltage and complies with the required pollution degree and material group standards for your application environment.

Selection Notes

Select this module when designing systems requiring a compact, thermally optimized SCR bridge leg capable of handling high surge currents and demanding thermal management. The top-side cooling pad opposite to the terminal pins facilitates low-profile stack assembly. Consider its 150 °C junction temperature capability and high overvoltage robustness for environments with significant electrical noise or transient voltage spikes.

Part Context

This component belongs to STMicroelectronics' automotive-grade thyristor family, specifically utilizing high-temperature automotive ASD technology. It is packaged in the ACEPACK SMIT format, which is distinct from discrete TO-247 packages like the TN6050HP-12WY. The module is designed to replace electromechanical relays in solid-state applications, offering faster response times and higher reliability without moving parts.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.

FAQ

What is the peak forward gate triggering current specification?

The peak forward SCR gate current (IGM) is specified as 8 A at a junction temperature of 150 °C with a pulse duration of 20 µs.

How is the junction temperature calculated for this module?

Junction temperature (Tj) can be calculated using the formula Tj = TC + PD × RTH(j-c), where TC is the case temperature, PD is the dissipated power, and RTH(j-c) is the junction-to-case thermal resistance.

What is the non-repetitive surge peak on-state current capability?

The non-repetitive surge peak on-state current (ITSM) is 660 A for an 8.3 ms pulse and 600 A for a 10 ms pulse, measured at an initial junction temperature of 25 °C.
