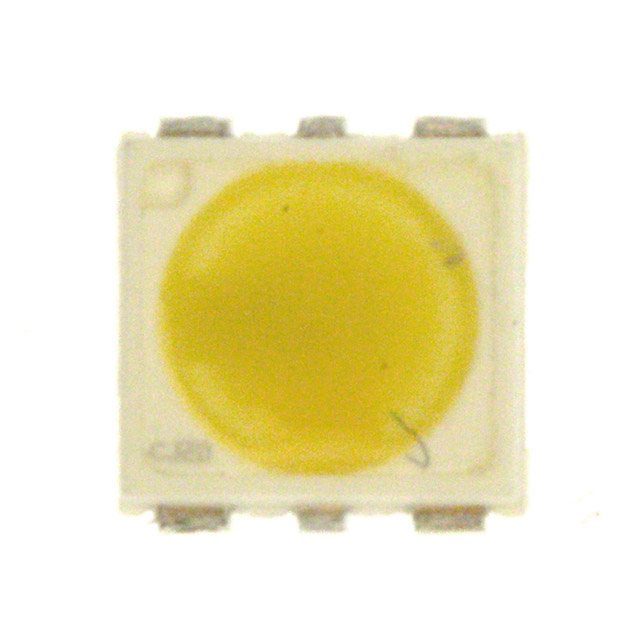

STW8T36B

$0.31

Description：LED COOL WHITE SMD
Series：-
Mfr：Seoul Semiconductor Inc.
Package：Tape & Reel (TR)

SKU:2335cb1a9319 Category: LED Indication - Discrete Brand: Seoul Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

STW8T36B is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Seoul Semiconductor Inc.. Its product description is LED COOL WHITE SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for STW8T36B

Description：LED COOL WHITE SMD
Series：-
Mfr：Seoul Semiconductor Inc.
Package：Tape & Reel (TR)
Color：White, Cool
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：6300mcd
Lens Style：Round with Flat Top
Lens Size：4.00mm Dia
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：60mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：2600K ~ 8200K
Wavelength - Peak：-
Features：-
Package / Case：6-SMD, J-Lead
Supplier Device Package：SMD
Size / Dimension：5.00mm L x 5.00mm W
Height (Max)：1.40mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for STW8T36B

STW8T36B

LED Indication - Discrete Overview

The STW8T36B is a single-color white LED manufactured by Seoul Semiconductor. It features a surface-mount technology (SMT) package with six terminals and a plastic construction. The device has a round optical shape and a viewing angle of 120 degrees. Key electrical parameters include a maximum continuous forward current of 90 mA and an optical intensity of 6300.0. The component height is 1.4 mm, with a lead pitch of 5 mm. It operates within a temperature range of -40°C to 85°C.

LED Indication - Discrete Feature Summary

Single-color white light emission
Surface-mount assembly for automated production
Wide 120-degree viewing angle

LED Indication - Discrete Applications

General illumination lighting
Display backlighting systems
Indicator applications

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix and binning codes against the official datasheet to ensure correct color temperature and flux grouping. Confirm that the requested quantity matches the standard packaging specifications provided in the manufacturer's documentation. Check for any recent updates to the RoHS compliance status or material declarations before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component based on its 90 mA maximum current rating and 1.4 mm profile height constraints. Ensure the application design accommodates the 120-degree viewing angle requirements. Verify thermal management capabilities for the specified operating temperature range of -40°C to 85°C during system integration.

LED Indication - Discrete Part Context

This part belongs to the Z-Power LED series from Seoul Semiconductor. It is designed for high-density mounting solutions using surface-mount technology. The product line focuses on providing efficient lighting solutions with standardized package dimensions for widespread industrial adoption.
