Product Detailed Parameters

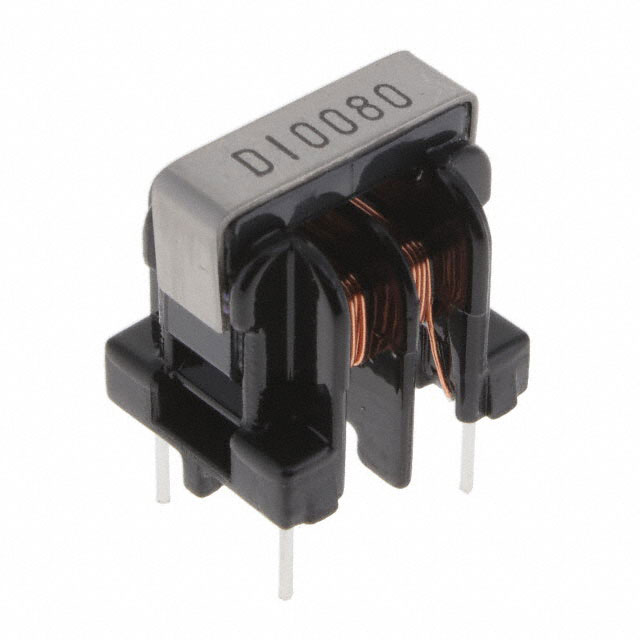

- Description：CMC 80UH 1A 2LN TH
- Series：SU
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：200mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" L x 0.630" W (18.00mm x 16.00mm)
- Height (Max)：0.787" (20.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：80 µH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview
The KEMET SU10VD-10080 is a surface-mount common mode choke designed for high-frequency noise suppression. It features an inductance of 80 µH and supports a maximum current of 1 A with a DC resistance of 250 mΩ. Rated for 250 VAC, this two-line filter utilizes a compact 1008 package to minimize footprint while maintaining effective electromagnetic interference mitigation in power supply circuits.
Feature Summary
- Provides effective attenuation of common-mode noise signals in dual-line configurations
- Engineered for stable performance under continuous direct current loads up to 1 A
- Constructed with a shielded core design to contain magnetic flux and reduce crosstalk
Applications
- Power input filtering for portable electronic devices
- Noise suppression in USB and data interface lines
- Electromagnetic interference mitigation in consumer appliance power supplies
Procurement Notes
Verify the specific suffix '10080' against the manufacturer's latest datasheet to confirm pinout orientation and tape/reel specifications. Ensure the component meets the required voltage isolation standards for the target application environment before integration into the final assembly.
Selection Notes
Select this component when space constraints require a low-profile SMD solution for dual-line filtering. The 80 µH value offers a balance between impedance at switching frequencies and saturation current handling suitable for moderate power applications.
Part Context
This part belongs to KEMET's SU series of surface-mount common mode chokes. These components are engineered for high-volume manufacturing processes and are intended for use in applications requiring reliable EMI suppression within strict spatial limitations on printed circuit boards.
Replacement Considerations
Consult official cross-reference lists for equivalent inductance and current ratings. Verify that any substitute maintains identical package dimensions and thermal characteristics to ensure compatibility with existing board layouts.
