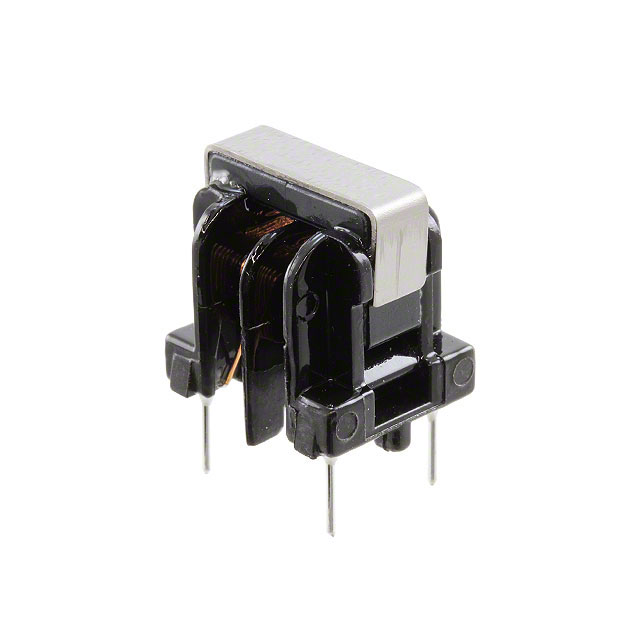

SU10VD-20010

Overview

The KEMET SU10VD-20010 is a high-frequency common mode choke from the SU Coils series. It features an inductance of 10 µH and supports a maximum DC current of 2 A. The component has a maximum DC resistance of 100 mOhms. It operates within a temperature range starting at -40°C.

Feature Summary

• Designed for dual applications with independent winding channels
• Utilizes high-frequency type core technology for effective noise suppression
• Constructed as a surface mount component for automated assembly

Applications

• Common mode noise filtering in electronic circuits
• Signal line protection in data communication interfaces
• Power supply input filtering for EMI reduction

Procurement Notes

Verify the specific package dimensions and terminal configuration against your PCB footprint before ordering. Confirm that the 2 A current rating meets your circuit's peak load requirements. Ensure the operating temperature range covers your environmental conditions. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when a compact solution is needed for suppressing common mode interference in high-speed digital or power lines. The low DC resistance minimizes voltage drop across the filter. Consider the physical size constraints of the application board. Evaluate the inductance value to ensure it provides sufficient attenuation at the target noise frequencies.

Part Context

This part belongs to KEMET's SU Coils family, specifically the 10VD high-frequency type series. These components are engineered for efficient electromagnetic interference suppression in space-constrained environments. The series offers reliable performance for various industrial and consumer electronics applications requiring robust filtering capabilities.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation.
