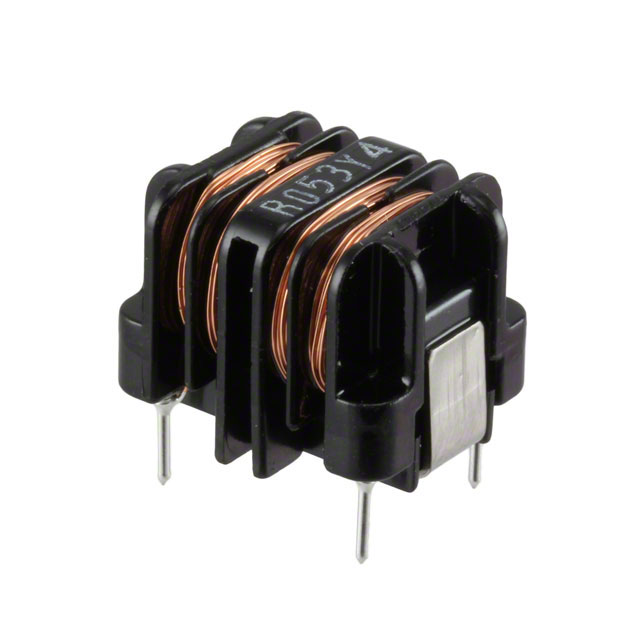

SU10VFC-R05140

$1.29

Description：CMC 14MH 500MA 2LN TH
Series：SU
Mfr：KEMET
Package：Bulk

SKU:e8519a866685 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 14MH 500MA 2LN TH
Series：SU
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：500mA
DC Resistance (DCR) (Max)：1.6Ohm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.709" L x 0.610" W (18.00mm x 15.50mm)
Height (Max)：0.591" (15.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：14 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SU10VFC-R05140

Overview

The KEMET SU10VFC-R05140 is a through-hole common mode choke belonging to the SU-10VFC-R series. It features a bobbin construction designed for vertical package mounting. The component provides a nominal inductance of 14 mH measured at 1 kHz and supports a maximum current rating of 0.5 A. It is rated for 250 V operation and exhibits an impedance of 1.6 Ω.

Feature Summary

Vertical package design suitable for through-hole mounting
Bobbin construction for common mode filtering applications

Applications

Common mode noise suppression in electronic circuits
Power line filtering requiring specific inductance values

Procurement Notes

Verify the complete part number against official KEMET documentation to ensure correct suffix alignment. Confirm that the required inductance, current rating, and voltage specifications match the application requirements before procurement. Cross-reference with authorized distributors to validate availability and authenticity.

Selection Notes

Select this component when a vertical through-hole common mode choke with 14 mH inductance and 0.5 A current handling is required. Ensure the PCB layout accommodates the vertical form factor and bobbin construction. Verify that the 250 V rating meets the circuit's operational voltage constraints.

Part Context

This component is part of the KEMET SU-10VFC-R series of common mode chokes. These components are engineered for power applications where common mode interference needs attenuation. The series utilizes bobbin technology to achieve specified inductance and current characteristics in a through-hole format.
