Product Detailed Parameters
- Description：CMC 8.8MH 700MA 2LN TH
- Series：SU
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：700mA
- DC Resistance (DCR) (Max)：1.1Ohm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" L x 0.610" W (18.00mm x 15.50mm)
- Height (Max)：0.591" (15.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：8.8 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

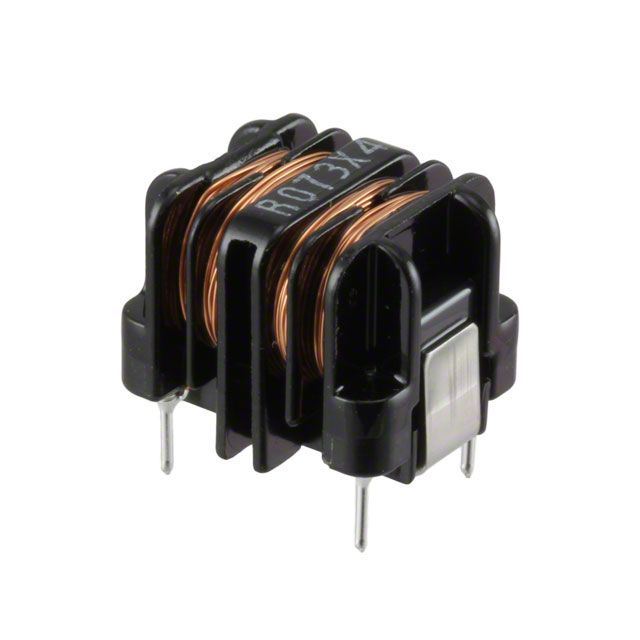

The SU10VFC-R07088 is a common mode choke from the KEMET 10VFC series, designed for through-hole mounting. It features an inductance of 8.8 mH and supports a rated current of 0.7 A at 250 V. The component has a maximum DC resistance of 1.1 Ohm and measures 18 mm in length, 15.5 mm in width, and 15 mm in height.
Feature Summary
- Provides effective noise suppression for data lines in noisy environments
- Constructed with vertical pins for reliable through-hole PCB integration
- Designed to reduce hum and buzz in audio signal paths
Applications
- Audio equipment signal line filtering
- Data line protection against electromagnetic interference
- General-purpose noise suppression in electronic circuits
Procurement Notes
Verify the specific suffix R07088 to confirm the 8.8 mH inductance and 0.7 A rating. Ensure the package type matches the required through-hole footprint dimensions. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.
Selection Notes
Select this component when a high-inductance common mode filter is needed for low-current applications. The 8.8 mH value provides significant attenuation for common mode noise. Verify that the 0.7 A current rating meets the circuit requirements without saturation issues during peak operation.
Part Context
This part belongs to the KEMET 10VFC series of common mode chokes. These components are engineered for robust performance in filtering applications. The series offers various inductance values to suit different noise suppression needs across multiple electronic industries.
FAQ
What is the inductance value of the SU10VFC-R07088?
The inductance value is 8.8 mH.
Is this component suitable for surface mount applications?
No, it is designed for through-hole mounting with vertical pins.
