SU10VFC-R10045

Overview

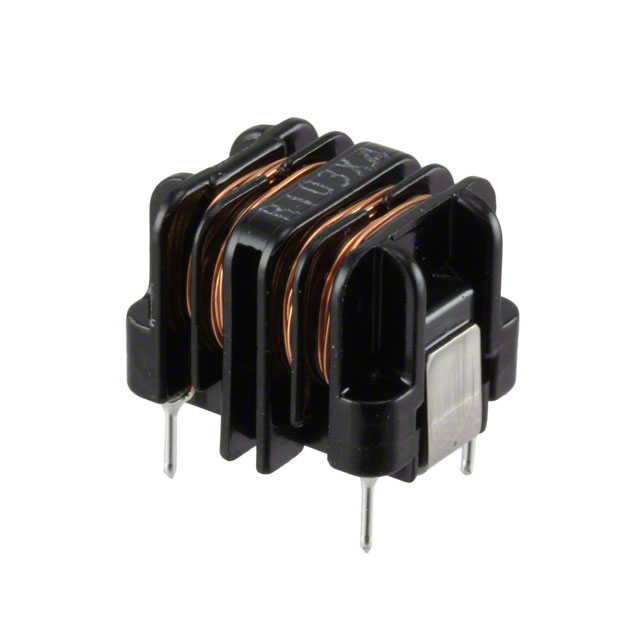

The KEMET SU10VFC-R10045 is a common mode choke belonging to the 10VFC-R series, designed for AC line filtering applications. It features an inductance of 4.5 mH and supports a current rating of 1 A at 250 V. The component utilizes surface mount technology within a compact form factor suitable for space-constrained designs. It provides effective electromagnetic interference suppression for single-phase AC circuits.

Feature Summary

• Provides common mode noise attenuation for AC power lines
• Engineered for surface mount integration into PCB assemblies
• Supports high voltage operation up to 250 V

Applications

• AC line filtering in consumer electronics
• Electromagnetic interference suppression in power supplies
• Signal integrity protection in single-phase AC circuits

Procurement Notes

Verify the specific suffix and series designation against official KEMET documentation to ensure compatibility with design requirements. Confirm that the 4.5 mH inductance and 1 A current rating align with the target application's electrical specifications before procurement.

Selection Notes

Select this component when designing AC line filters requiring common mode noise reduction in surface mount configurations. Ensure the operating voltage does not exceed 250 V and the load current remains within the 1 A limit to maintain performance and reliability standards.

Part Context

This part belongs to the KEMET 10VFC-R series of common mode chokes. These components are engineered for general-purpose AC line filtering, offering reliable noise suppression in compact surface mount packages suitable for modern electronic manufacturing processes.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
