Product Detailed Parameters
- Description：CMC 2.5MH 1.3A 2LN TH
- Series：SU
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.3A
- DC Resistance (DCR) (Max)：300mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" L x 0.610" W (18.00mm x 15.50mm)
- Height (Max)：0.591" (15.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：2.5 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

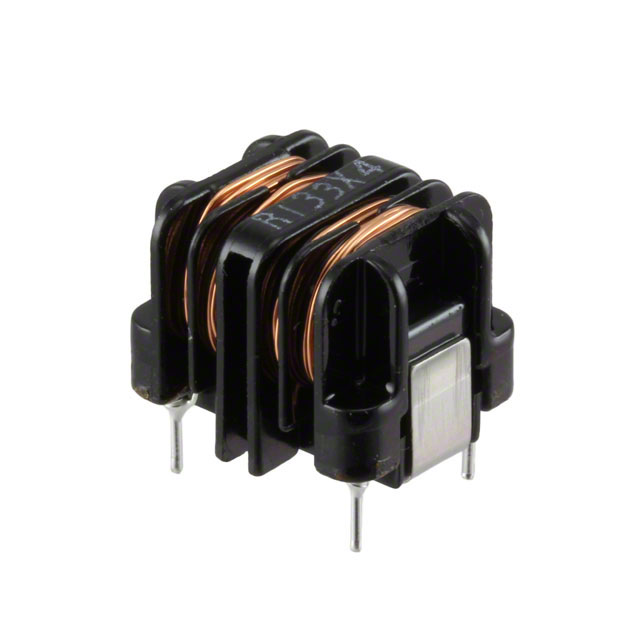

The KEMET SU10VFC-R13025 is a common mode choke filter designed for signal and power line protection. It features an inductance of 2.5 mH at 1 kHz and supports a continuous current rating of 1.3 A. The component has an AC voltage rating of 250 V and operates within a temperature range of -25°C to 120°C. Its DC resistance is specified as 300 milliohms, ensuring low insertion loss in high-frequency applications.
Feature Summary
- Provides effective common mode noise suppression for sensitive electronic circuits
- Engineered for high-current handling capabilities up to 1.3 amperes
- Constructed with robust materials suitable for wide operating temperature environments
Applications
- Industrial control systems requiring EMI filtering
- Automotive electronics and infotainment modules
- Consumer appliance power supply inputs
Procurement Notes
Verify the specific suffix and packaging configuration against the manufacturer's latest datasheet before ordering. Confirm that the 250V AC rating and 1.3A current limits align with your circuit design requirements. Ensure compatibility with your PCB footprint and reflow soldering profiles. Cross-reference the part number with authorized distributors to guarantee authenticity and traceability.
Selection Notes
Select this component when common mode interference needs attenuation in circuits carrying moderate currents. The 2.5 mH inductance offers a balance between noise suppression and physical size. Consider the 300 milliohm DC resistance impact on power efficiency. Evaluate the thermal performance at maximum load to ensure operation remains within the 120°C upper limit.
Part Context
This component belongs to KEMET's SU10VFC series of common mode chokes. These filters are widely used in automotive and industrial sectors to meet electromagnetic compatibility standards. The series provides reliable noise reduction for data lines and power feeds in harsh electrical environments.
Replacement Considerations
Consult official substitution guides for equivalent inductance and current ratings. Verify pinout compatibility and mechanical dimensions before replacing. Ensure alternative components meet the same voltage and temperature specifications.
