Product Detailed Parameters
- Description：CMC 1.6MH 1.7A 2LN TH
- Series：SU
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.7A
- DC Resistance (DCR) (Max)：210mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" L x 0.610" W (18.00mm x 15.50mm)
- Height (Max)：0.591" (15.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：1.6 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

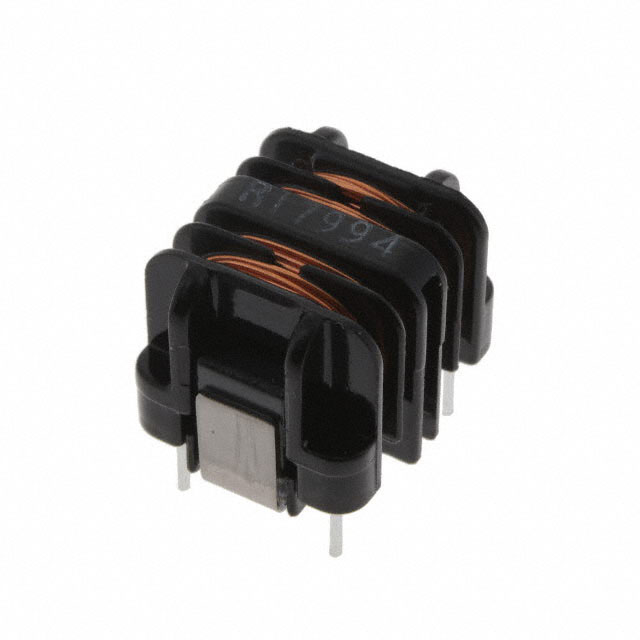

The KEMET SU10VFC-R17016 is a through-hole common mode filter from the SU-10VFC-R series. It features an inductance of 1600 µH and a DC current rating of 1.7 A. The component has a maximum DC resistance of 0.21 Ω and operates within a temperature range of -40°C to 120°C. Designed for frequencies ≥ 150 kHz, it utilizes proprietary 10H ferrite material.
Feature Summary
- Utilizes proprietary 10H ferrite material for effective noise suppression
- Designed for operation in frequency ranges of 150 kHz or higher
- Through-hole mounting configuration for robust mechanical attachment
Applications
- Data line filtering in electronic circuits
- Common mode noise reduction in power supplies
- EMI suppression in industrial equipment
Procurement Notes
Verify the specific suffix R17016 against official KEMET documentation to confirm the 1600 µH inductance and 1.7 A current rating. Ensure the procurement specification matches the required through-hole package and operating temperature range of -40°C to 120°C. Cross-reference with authorized distributors to validate part authenticity and compliance status.
Selection Notes
Select this component when designing circuits requiring common mode chokes for frequencies above 150 kHz. The 1.7 A current rating and 0.21 Ω resistance must align with the circuit's power requirements. Consider the through-hole form factor if surface mount options are unsuitable for the assembly process or mechanical stress conditions.
Part Context
This component belongs to the KEMET SU-10VFC-R series of common mode filters. The series offers various sizes and specifications utilizing 10H ferrite material. These components are engineered for applications demanding reliable noise filtration in environments where standard materials may be insufficient.
Replacement Considerations
Check KEMET datasheets for other SU-10VFC-R variants with matching 1600 µH inductance and 1.7 A ratings. Verify that any substitute maintains the same through-hole pin configuration and physical dimensions to ensure compatibility with existing PCB layouts.
