Product Detailed Parameters
- Description：CMC 1MH 2A 2LN TH
- Series：SU
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：150mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" L x 0.610" W (18.00mm x 15.50mm)
- Height (Max)：0.591" (15.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：1 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

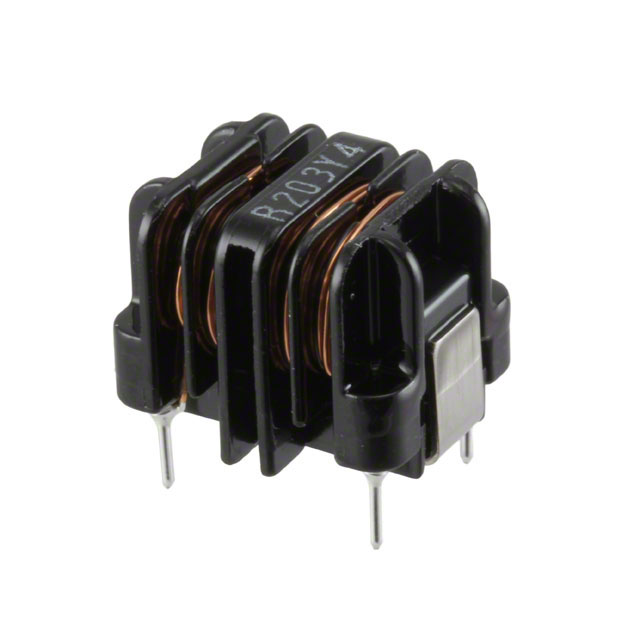

The KEMET SU10VFC-R20010 is a common mode choke filter designed for utility applications. It features a rated voltage of 250V and a current rating of 2A. The inductance value is specified as 1mH. The component has a cylindrical diameter of 18 mm. It is manufactured by KEMET Corporation.
Feature Summary
- Designed for filtering electricity, natural gas, water, and other utilities
- Common mode choke filter configuration
Applications
- Electricity utility monitoring
- Natural gas utility systems
- Water utility infrastructure
Procurement Notes
Verify the specific datasheet version to confirm mechanical dimensions and electrical tolerances. Ensure the component meets the required environmental standards for the intended utility application. Cross-reference the manufacturer part number with official KEMET documentation to avoid counterfeit or obsolete stock issues during sourcing.
Selection Notes
Select this component when a 250V rated common mode choke with 1mH inductance is required for utility metering or control circuits. Consider the 2A current rating and 18mm diameter for physical integration constraints. Verify compatibility with the specific utility medium being monitored.
Part Context
This component belongs to KEMET's line of common mode chokes and filters. It is distinct from their ceramic capacitors and power inductors listed in related searches. The product is categorized under passive components for utility infrastructure.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided source material. Consult KEMET technical support for equivalent alternatives if this specific model is unavailable.
FAQ
What is the inductance value of the SU10VFC-R20010?
The inductance value is 1mH.
What is the maximum current rating for this component?
The maximum current rating is 2A.
