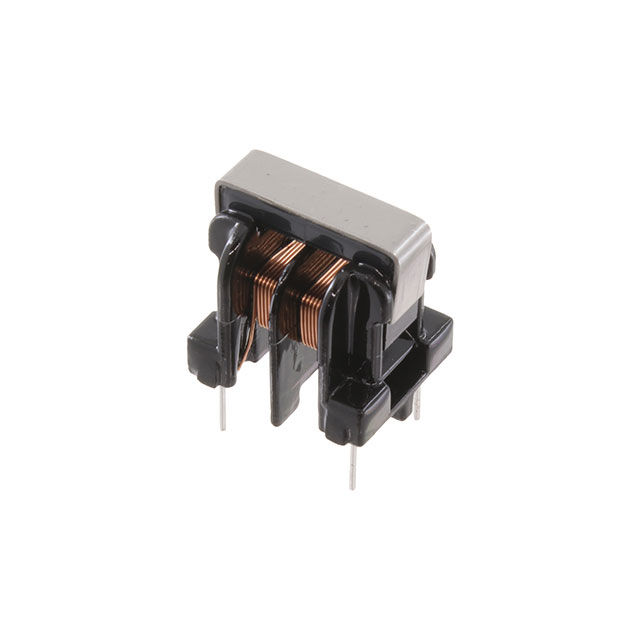

SU16VD-30040

$1.72

Description：CMC 40UH 3A 2LN TH
Series：SU
Mfr：KEMET
Package：Tray

SKU:5424a5de0c77 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 40UH 3A 2LN TH
Series：SU
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：70mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.906" L x 0.748" W (23.00mm x 19.00mm)
Height (Max)：1.083" (27.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：40 µH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SU16VD-30040

Overview

The KEMET SU16VD-30040 is a through-hole common mode choke from the SU-16VD series. It features an inductance of 40 µH and a rated current of 3 A with a DC resistance of 0.07 Ohms. The component operates at a voltage rating of 250 V. It utilizes a proprietary ferrite UU core design for effective interference suppression.

Feature Summary

Proprietary ferrite UU core design for enhanced noise suppression
Through-hole bobbin construction for robust mounting
Optimized for AC line filter applications

Applications

AC line filtering
Common mode interference suppression
General EMI mitigation circuits

Procurement Notes

Verify the specific suffix against official KEMET documentation to confirm electrical ratings and physical dimensions. Ensure the procurement source provides valid datasheets matching the SU-16VD series specifications. Cross-reference manufacturer part numbers to avoid counterfeit components.

Selection Notes

Select this component for applications requiring 40 µH inductance at 3 A current. Consider the 250 V rating and 0.07 Ohm DC resistance for circuit compatibility. Evaluate the through-hole package constraints against PCB layout requirements before finalizing the design.

Part Context

This component belongs to the KEMET SU-16VD series of common mode chokes. These devices are designed for general-purpose interference suppression using specialized ferrite materials. The series offers various inductance values tailored for different current and voltage requirements in power supply lines.

Replacement Considerations

Consult official KEMET substitution guides for verified equivalents. Generic replacements may not match the proprietary UU core performance or thermal characteristics.
