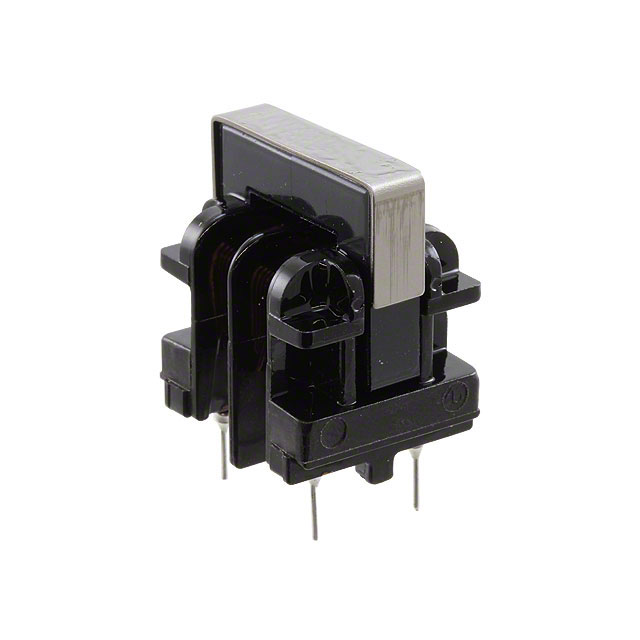

SU16VD-40010

$1.67

Description：CMC 10UH 4A 2LN TH
Series：SU
Mfr：KEMET
Package：Bulk

SKU:be2b15fd5e14 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 10UH 4A 2LN TH
Series：SU
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：4A
DC Resistance (DCR) (Max)：40mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.906" L x 0.748" W (23.00mm x 19.00mm)
Height (Max)：1.083" (27.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：10 µH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SU16VD-40010

Overview

The KEMET SU16VD-40010 is a through-hole common mode filter designed for high-frequency AC line applications. It features a rated voltage of 250V and a current rating of 4A, with an inductance of 10µH and a DC resistance of 40mΩ. The component utilizes a leaded package suitable for consumer electronics and general filtering tasks.

Feature Summary

Functions as a common mode choke for high-frequency noise suppression
Suitable for AC line filtering in consumer electronics

Applications

High-frequency AC line filters
Consumer electronics noise suppression
Common mode filtering applications

Procurement Notes

Verify the specific suffix against official KEMET documentation to ensure correct electrical ratings. Confirm that the required inductance and current specifications align with the system design requirements before procurement.

Selection Notes

Select this component when a through-hole solution is required for common mode interference reduction. Ensure the operating environment supports the specified voltage and current limits for reliable performance.

Part Context

This part belongs to the KEMET SU series of coils, which are engineered for high-frequency AC line filtering. The series provides robust common mode choke capabilities for various electronic systems.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Do not assume cross-compatibility without validating electrical parameters and physical dimensions.
