Product Detailed Parameters
- Description：CMC 1.1MH 500MA 2LN TH
- Series：SU
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：500mA
- DC Resistance (DCR) (Max)：840mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：125V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.591" L x 0.394" W (15.00mm x 10.00mm)
- Height (Max)：0.335" (8.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：1.1 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

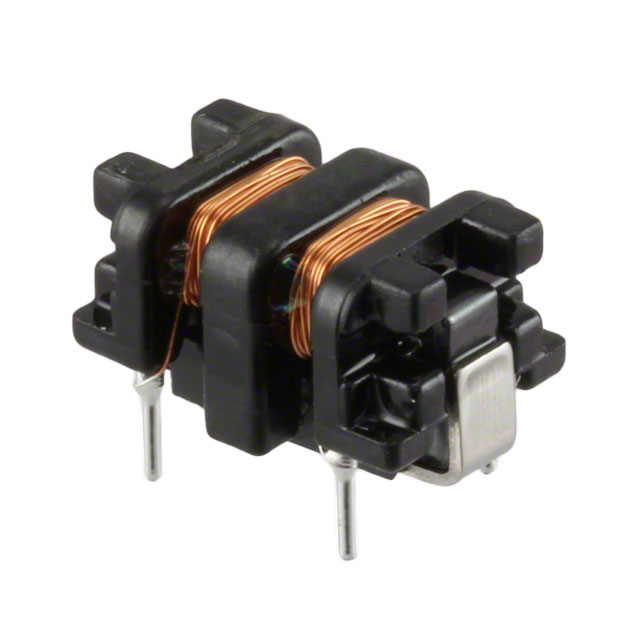

The KEMET SU7VC-05011 is a through-hole common mode choke belonging to the SU-7VC series. It features a bobbin construction with two terminals and a nominal inductance of 1,100 µH (1.1 mH). The component supports a maximum current rating of 0.5 A and operates at a voltage of 250 V. Its direct current resistance (DCR) is specified as 840 mΩ. Designed for high reliability, it meets automotive standards including AEC-Q200.
Feature Summary
- Provides effective common mode noise suppression for power lines
- Constructed with a through-hole bobbin design for secure PCB mounting
- Complies with AEC-Q200 automotive qualification standards
Applications
- Automotive electronic circuits requiring EMI filtering
- Power supply input stages for noise reduction
- Signal line protection in vehicle control modules
Procurement Notes
Verify the manufacturer part number SU7VC-05011 against official KEMET documentation to confirm specifications. Ensure compatibility with required current ratings and inductance values for the specific application. Check for RoHS compliance status if environmental regulations apply. Confirm package type matches the target PCB footprint.
Selection Notes
Select this component when a through-hole common mode choke with 1.1 mH inductance is required. Consider the 0.5 A current limit and 840 mΩ DCR for power loss calculations. Verify that the 250 V rating suits the circuit voltage. Ensure the physical dimensions fit the assembly constraints.
Part Context
This component is part of the KEMET SU-7VC series of common mode chokes. These components are designed for general-purpose EMI suppression in various electronic applications. The series offers reliable performance for filtering differential mode noise while maintaining low insertion loss for desired signals.
Replacement Considerations
Consult official KEMET substitution guides or datasheets for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical parameters and physical dimensions.
