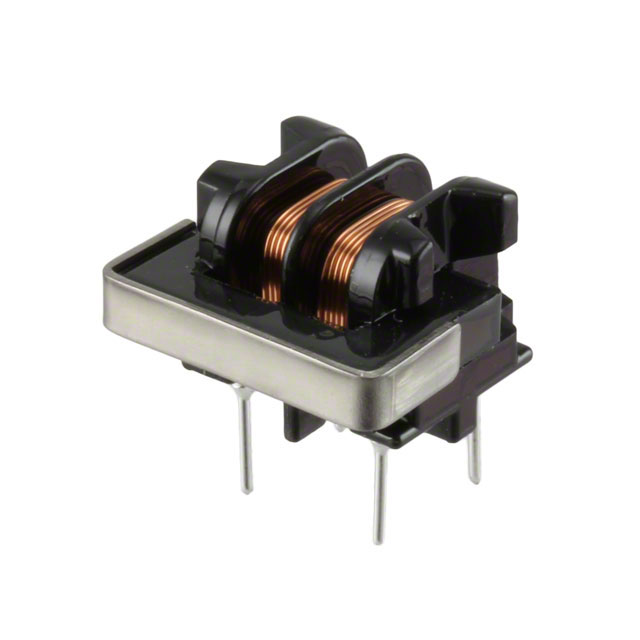

SU9H-10005

$0.80

Description：CMC 500UH 1A 2LN TH
Series：SU
Mfr：KEMET
Package：Bulk

SKU:088496d04ba3 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 500UH 1A 2LN TH
Series：SU
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：300mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max)：0.492" (12.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：500 µH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SU9H-10005

Overview

The KEMET SU9H-10005 is a through-hole common mode choke from the SU-9H series, designed for AC line filtering. It features an inductance of 500 µH and a maximum DC current rating of 1 A. The component has a maximum DC resistance of 0.3 Ω and supports voltages up to 250 V AC. It operates within a temperature range of -25 °C to 80 °C. The device utilizes a bobbin construction with solder pad terminations and measures 17 mm in length, width, and height.

Feature Summary

Provides electromagnetic interference suppression for AC power lines
Utilizes through-hole mounting for secure PCB integration
Features bobbin construction for structural stability

Applications

AC line filtering in consumer electronics
Electromagnetic interference noise suppression
Power supply input stages

Procurement Notes

Verify the specific suffix against official KEMET documentation to confirm exact electrical tolerances and packaging configurations. Ensure the procurement channel provides valid manufacturer traceability. Confirm that the delivered components match the SU-9H series specifications regarding thermal ratings and current handling capabilities before integration into final assemblies.

Selection Notes

Select this component when designing circuits requiring common mode noise attenuation for AC mains inputs. The 1 A current rating and 500 µH inductance suit standard low-power consumer applications. Verify that the through-hole package dimensions fit the target PCB layout and that the operating temperature range aligns with the environmental conditions of the end-use device.

Part Context

This component belongs to the KEMET SU-9H series of common mode chokes. These devices are engineered specifically for AC line filter applications to mitigate conducted emissions. The series offers standardized through-hole solutions for manufacturers seeking reliable EMI suppression without the complexity of surface-mount assembly processes.
