Product Detailed Parameters
- Description：CMC 13.02UH 2.5A 2LN TH
- Series：SU
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2.5A
- DC Resistance (DCR) (Max)：42mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.669" L x 0.610" W (17.00mm x 15.50mm)
- Height (Max)：0.492" (12.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：13.02 µH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

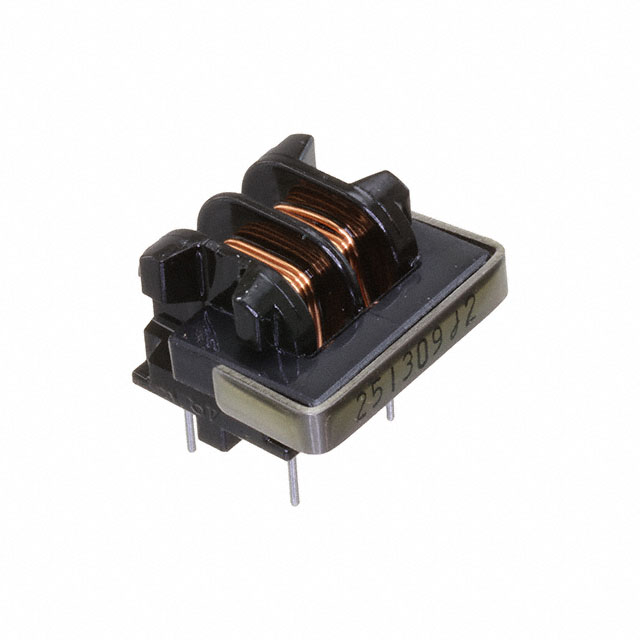

The KEMET SU9HD-25013 is a through-hole common mode choke from the SU-9HD series, designed for power line filtering. It features an inductance of 13.02 µH at 1 kHz and supports a DC current rating of 2.5 A. The component has a maximum DC resistance (DCR) of 42 mΩ and operates within a temperature range of -40°C to +120°C. Rated for 250V, it utilizes proprietary 700L ferrite material to provide high-frequency noise suppression in two-line configurations.
Feature Summary
- Utilizes proprietary 700L ferrite material for effective high-frequency noise attenuation
- Designed as a two-line common mode filter for power circuit applications
- Through-hole bobbin construction suitable for standard PCB mounting
Applications
- Power line filtering in electronic equipment
- Noise suppression in AC/DC power supplies
- EMI reduction in general-purpose electrical circuits
Procurement Notes
Verify the specific suffix code against official KEMET documentation to confirm exact electrical tolerances and packaging specifications. Ensure the procurement source provides valid datasheets matching the SU-9HD series parameters. Cross-reference the voltage and current ratings with system requirements before ordering to prevent compatibility issues.
Selection Notes
Select this component when a 2.5A rated common mode choke with 13.02 µH inductance is required for through-hole assembly. Consider the 42 mΩ DCR for efficiency calculations and verify that the operating environment stays within the specified -40°C to +120°C range. Confirm that the 250V rating meets the insulation requirements of the target application.
Part Context
This part belongs to the KEMET SU-9HD series of common mode chokes. These components are engineered for robust performance in power filtering applications. The series offers various inductance values and current ratings, all sharing similar through-hole bobbin designs and ferrite material characteristics for consistent EMI suppression across different power levels.
Replacement Considerations
Consult official KEMET substitution guides for verified equivalents. Ensure any replacement matches the 13.02 µH inductance, 2.5A current rating, and 42 mΩ DCR. Verify package compatibility and thermal limits before integrating alternative parts.
