Product Detailed Parameters
- Description：CMC 6MH 300MA 2LN TH
- Series：SU
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：300mA
- DC Resistance (DCR) (Max)：2Ohm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.669" L x 0.610" W (17.00mm x 15.50mm)
- Height (Max)：0.472" (12.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：6 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

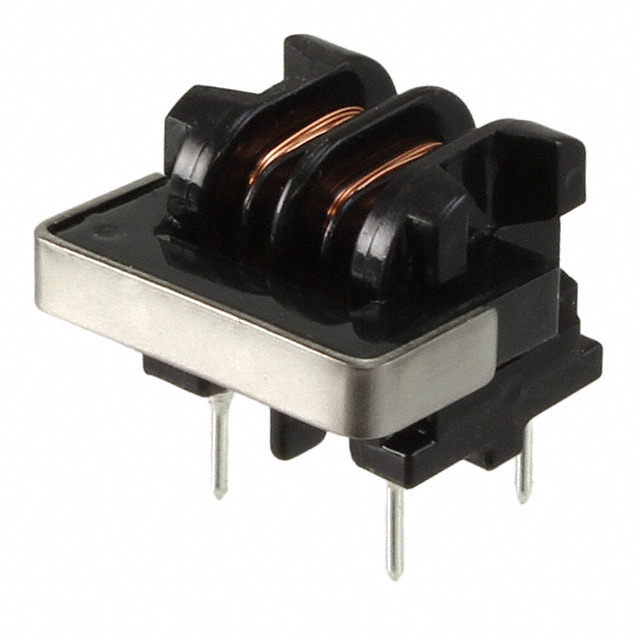

The KEMET SU9HF-03060 is a through-hole common mode choke designed for line filtering applications. It features an inductance of 6 mH measured at 1 kHz and supports a maximum DC current of 300 mA. The component has a maximum DC resistance of 2 Ohms and operates within a temperature range of -25°C to +120°C. Rated for 250 VAC, it utilizes proprietary 7H ferrite material suitable for frequencies ≥ 150 kHz. Physical dimensions are 17 mm in length, 15.5 mm in width, and 12 mm in height.
Feature Summary
- Utilizes proprietary 7H ferrite material for effective noise suppression
- Designed for horizontal mounting via through-hole termination
- Optimized for electromagnetic interference filtering in the ≥ 150 kHz range
Applications
- Line filtering for electronic equipment
- Common mode noise suppression in power circuits
- Electromagnetic compatibility enhancement in consumer electronics
Procurement Notes
Verify the specific ordering suffix and manufacturing date code against the latest KEMET datasheet to ensure compliance with current RoHS directives and material composition standards. Confirm that the through-hole footprint matches the target PCB design constraints before finalizing procurement orders.
Selection Notes
Select this component when a 6 mH inductance is required for common mode noise reduction in low-current applications up to 300 mA. Ensure the operating environment stays within the -25°C to +120°C thermal limits. Verify that the 2 Ohm DC resistance aligns with the circuit's voltage drop requirements and that the 250 VAC rating meets the system insulation needs.
Part Context
This part belongs to the KEMET SU-9HF series of common mode chokes. The series offers various sizes and specifications tailored for different current and inductance requirements. These components are engineered to provide reliable performance in compact spaces while maintaining high efficiency in noise filtration tasks across diverse industrial and commercial applications.
Replacement Considerations
Consult official KEMET substitution guides for verified equivalents. Cross-reference inductance, current rating, and physical dimensions to ensure functional compatibility without modifying the existing PCB layout or electrical characteristics.
