Product Detailed Parameters
- Description：CMC 2LN TH
- Series：SU
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：600mA
- DC Resistance (DCR) (Max)：820mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.669" L x 0.610" W (17.00mm x 15.50mm)
- Height (Max)：0.472" (12.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

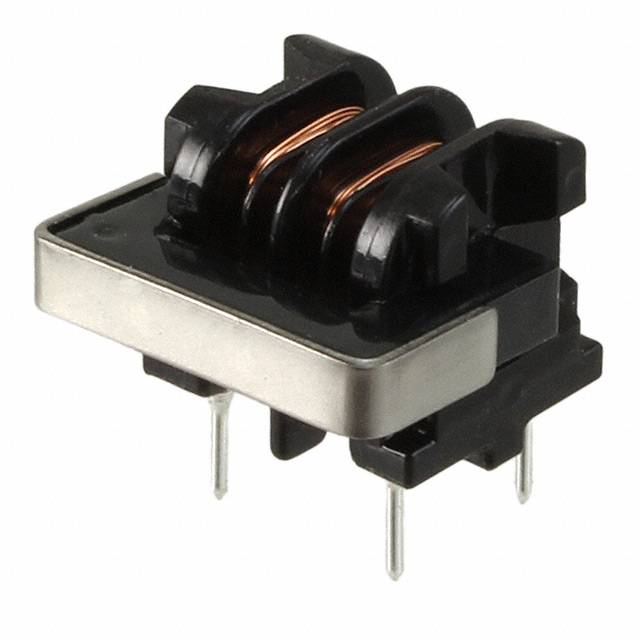

The KEMET SU9HF-06030 is a through-hole common mode choke designed for AC line filtering applications. It features a single channel configuration with an inductance of 3 mH and a maximum DC current rating of 600 mA. The component operates within a temperature range of -25°C to +120°C and exhibits a maximum DC resistance of 820 mOhms. Its physical dimensions are 17 mm in length, 15.5 mm in width, and 12 mm in height.
Feature Summary
- Provides effective common mode noise suppression for AC line circuits
- Supports horizontal mounting via through-hole termination
- Rated for high operating temperatures up to 120°C
Applications
- AC power line filtering
- EMI suppression in electronic equipment
- Signal integrity protection in low-current circuits
Procurement Notes
Verify the specific suffix codes against official KEMET documentation to ensure correct electrical characteristics and packaging options. Confirm RoHS compliance status and lead-free requirements prior to procurement. Cross-reference the manufacturer part number with authorized distributor listings to validate authenticity and avoid counterfeit components.
Selection Notes
Select this component when designing circuits requiring common mode noise attenuation with a current capacity of 600 mA or less. Ensure the PCB layout accommodates the specified horizontal mounting footprint and physical dimensions. Consider the thermal environment to guarantee operation remains within the -25°C to +120°C range during continuous use.
Part Context
This component belongs to the SU-9HF series of common mode chokes manufactured by KEMET. The series is engineered for general-purpose EMI filtering in consumer and industrial electronics. It utilizes a core material optimized for high inductance values at low current levels, distinguishing it from higher-power power line filters.
Replacement Considerations
Consult official KEMET substitution guides for verified alternatives. Generic cross-references may not match the specific 3 mH inductance or 600 mA current rating required for this application.
