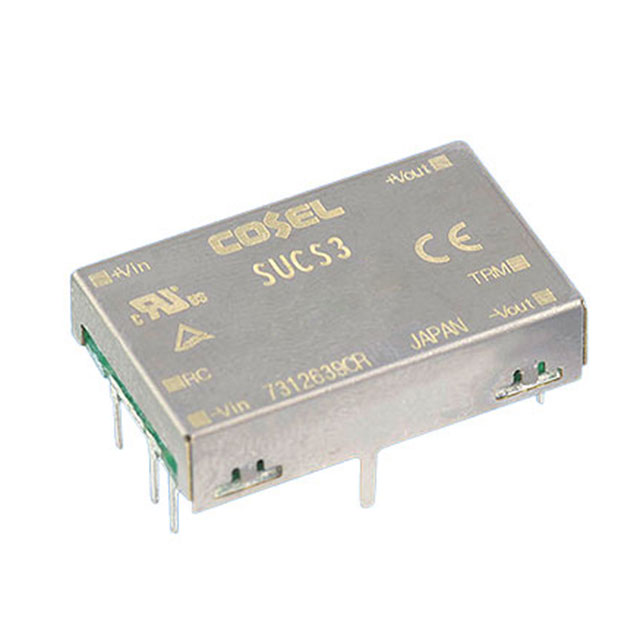

SUCS30515C-C

SUCS30515C-C is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cosel USA, Inc.. Its product description is DC DC CONVERTER 15V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SUCS30515C-C

• Description：DC DC CONVERTER 15V 3W
• Series：SUCS (3W)
• Mfr：Cosel USA, Inc.
• Package：Box
• Type：Isolated Module, Conformal Coated
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：3 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：77%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for SUCS30515C-C
