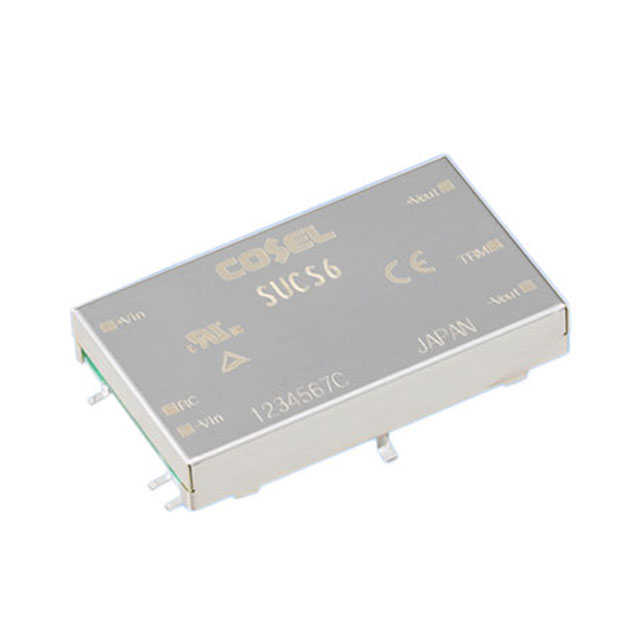

SUCS61215B

SUCS61215B is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cosel USA, Inc.. Its product description is DC DC CONVERTER 15V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SUCS61215B

• Description：DC DC CONVERTER 15V 6W
• Series：SUCS (6W)
• Mfr：Cosel USA, Inc.
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：400mA
• Power (Watts)：6 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：85%
• Mounting Type：Surface Mount
• Package / Case：6-SMD Module
• Size / Dimension：1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
