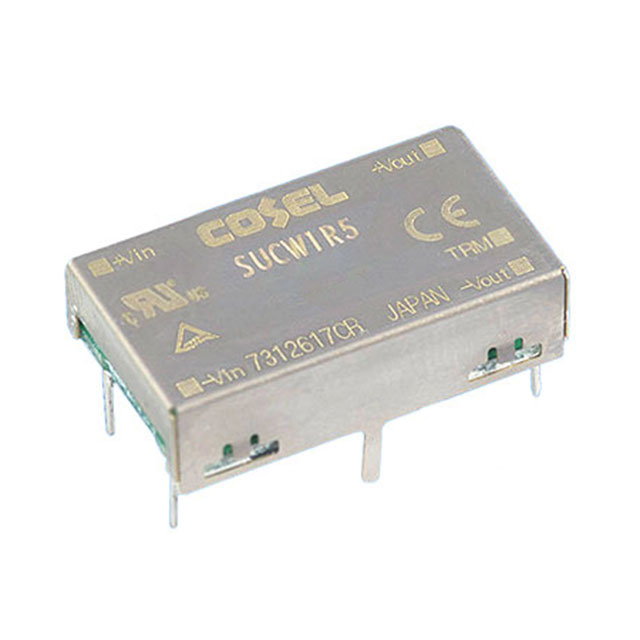

SUCW1R52412C-C

SUCW1R52412C-C is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cosel USA, Inc.. Its product description is DC DC CONVERTER +/-12V 24V 1.6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SUCW1R52412C-C

• Description：DC DC CONVERTER +/-12V 24V 1.6W
• Series：SUCW (1.5W)
• Mfr：Cosel USA, Inc.
• Package：Box
• Type：Isolated Module, Conformal Coated
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：65mA, 65mA
• Power (Watts)：1.6 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：73%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm)
• Supplier Device Package：-

DC DC Converters datasheet and documents for SUCW1R52412C-C
