SURS8320T3G-VF01

$0.98

Description：DIODE STANDARD 200V 4A SMC
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:af0130833e83 Category: Single Diodes Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SURS8320T3G-VF01 is listed in the Single Diodes range at ChipApex. The manufacturer field lists onsemi. Its product description is DIODE STANDARD 200V 4A SMC. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for SURS8320T3G-VF01

Description：DIODE STANDARD 200V 4A SMC
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：200 V
Current - Average Rectified (Io)：4A
Voltage - Forward (Vf) (Max) @ If：890 mV @ 4 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：35 ns
Current - Reverse Leakage @ Vr：5 µA @ 200 V
Capacitance @ Vr, F：-
Mounting Type：Surface Mount

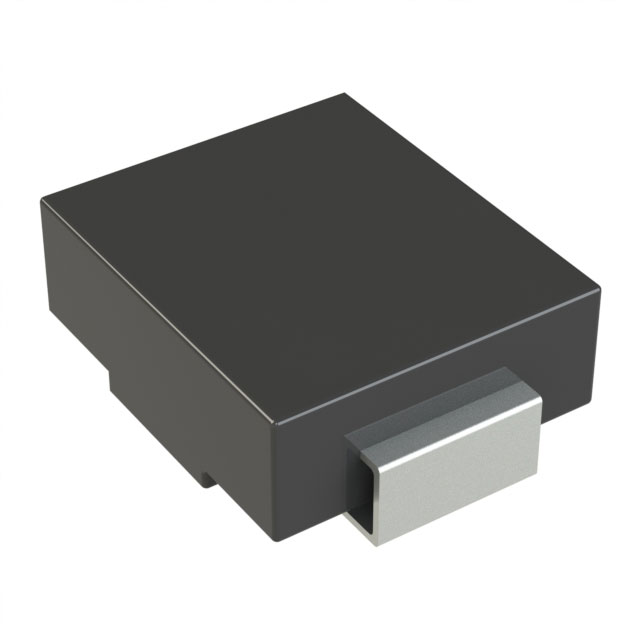

Package / Case：DO-214AB, SMC
Supplier Device Package：SMC
Operating Temperature - Junction：-65°C ~ 175°C
Grade：Automotive
Qualification：AEC-Q101

Single Diodes datasheet and documents for SURS8320T3G-VF01

SURS8320T3G-VF01

Single Diodes Overview

The SURS8320T3G-VF01 is a 3.0 A ultra-fast recovery power rectifier with a 200 V maximum repetitive reverse voltage, manufactured by onsemi. It utilizes an epitaxial construction with oxide passivation and metal overlay contact for high-voltage, high-frequency rectification. The device operates within a junction temperature range of -65 °C to +175 °C and features a low forward voltage drop ranging from 0.71 V to 1.05 V at 3.0 A and 150 °C. It is housed in a compact SMC (DO-214AB) surface-mount package.

Single Diodes Feature Summary

AEC-Q101 qualified and PPAP capable for automotive applications requiring unique site and control change requirements
High-temperature glass passivated junction for enhanced reliability
Small, compact surface-mountable rectangular package designed for automated handling

Single Diodes Applications

High voltage, high frequency rectification
Free wheeling diodes
Protection diodes in surface mount applications

Single Diodes Procurement Notes

Verify the specific suffix VF01 against official documentation to confirm compliance with automotive site and control change requirements. Confirm that the component meets RoHS standards and is lead-free. Ensure the ordering quantity aligns with the standard tape and reel packaging specifications provided by the manufacturer.

Single Diodes Selection Notes

Select this component when a robust ultra-fast recovery rectifier is required for automotive or industrial environments. The AEC-Q101 qualification makes it suitable for systems demanding strict quality and reliability standards. Consider its thermal characteristics and current derating curves for proper heat dissipation design.

Single Diodes Part Context

This part belongs to the MURS/SURS series of ultra-fast recovery power rectifiers. The SURS prefix specifically denotes devices intended for automotive and other applications that require unique site and control change requirements. It shares the same electrical performance as the standard MURS series but adheres to stricter automotive manufacturing controls.
