SVC12120VB_R2_00001

Single Diodes Overview

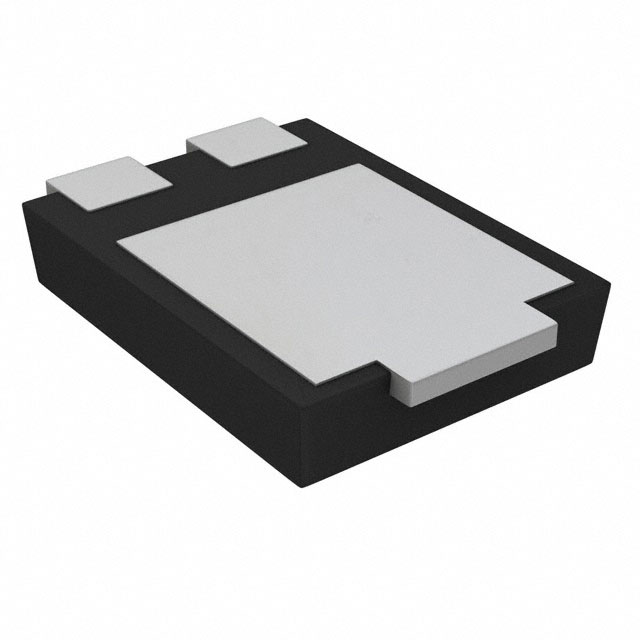

The SVC12120VB_R2_00001 is a silicon Schottky diode manufactured by Panjit International Inc. It features a 120V reverse voltage rating and supports a continuous forward current of 12A. The component utilizes the TO-277B surface-mount package, designed for efficient power rectification with low forward voltage drop characteristics typical of Schottky technology.

Single Diodes Feature Summary

• Utilizes silicon Schottky barrier technology for high-efficiency rectification
• Designed in a compact TO-277B surface-mount package for automated assembly

Single Diodes Applications

• General-purpose power rectification circuits
• DC-DC converter output stages
• Free-wheeling diode applications in inductive loads

Single Diodes Procurement Notes

Verify the specific suffix R2_00001 against the manufacturer's latest datasheet to confirm packaging and tape-and-reel specifications. Ensure compatibility with standard TO-277B footprint designs during PCB layout. Confirm RoHS compliance status directly with Panjit documentation prior to final procurement decisions.

Single Diodes Selection Notes

Select this component when a 12A current capacity and 120V blocking voltage are required in a small surface-mount form factor. The TO-277B package offers thermal performance suitable for moderate power densities. Verify that the application environment remains within the specified operating temperature range for reliable long-term operation.

Single Diodes Part Context

This part belongs to Panjit's series of Schottky rectifiers engineered for modern power supply architectures. The TO-277B package provides a balance between current handling capability and board space efficiency. It serves as a discrete solution for replacing larger through-hole rectifiers in compact electronic designs requiring robust voltage ratings.
